| Operation system | Linux |
|---|---|
| ROM | 32 MB |
| RAM | 256 MB |
| Processor | Embeded high performance processor |
| Lens | 1 |
|---|---|
| Resolution | Main stream:1920 × 1080p and 1280 × 720p Sub stream: 640 × 480p |
| FOV | Horizontal: 124° Vertical: 75° |
| Wide dynamic range (WDR) | Digital WDR/76.9 dB |
| Supplement light | IR light, up to 3 m |
| Video compression standard | H.264; H.265; MJPEG |
| Audio input | 1 built-in omnidirectional microphone |
|---|---|
| Audio compression standard | G.711 U, G.711 A, Opus, AAC-LD, AAC-LC, G.726, G.722.1 |
| Audio output | 1 built-in loudspeaker |
| Audio compression bitrate | 64 Kbps |
| Audio quality | Noise suppression and echo cancellation |
| Volume adjustment | Adjustable |
| User capacity | 2000 |
|---|---|
| Card capacity | 10000 |
| Linked indoor station capacity | 1 (main indoor station) |
| Sub door station capacity | 16 |
| Network protocol | TCP/IP, RTSP, IPV6, ONVIF |
|---|---|
| Wi-Fi | IEEE802.11b, IEEE802.11g, IEEE802.11n |
| Received frequency | 2.4 to 2.4835 GHz |
| Transmitted frequency | 2.4 to 2.4835 GHz |
| Bandwidth | 20/40 MHz |
| Frequency power | 802.11b:15 dBm +/- 1.5 dBm 802.11g:15 dBm +/- 1.5 dBm 802.11n(ht20):14 dBm +/- 1.5 dBm 802.11n(ht40):12 dBm +/- 1.5 dBm |
| Card reading frequency | 13.56 MHz |
|---|
| Alarm input | 4 |
|---|---|
| Network interface | 1 RJ-45, 10/100 Mbps self-adaptive |
| TAMPER | 1 |
| Exit button | 2 |
| RS-485 | 1 |
| TF card | Reserved |
| Lock control | 2 relays, Max. 30 VDC 2 A |
| Door contact input | 2 |
| Button | 1 physical button |
|---|---|
| Installation | Surface mounting |
| Indicator | 3 |
| Net weight: 0.370 kg Gross weight: 0.637 kg | |
| Protective level | IP65, IK08 |
| Working temperature | -40 °C to 53 °C(-40 °F to 127.4 °F) |
| Working humidity | 10% to 95% (no-condensing) |

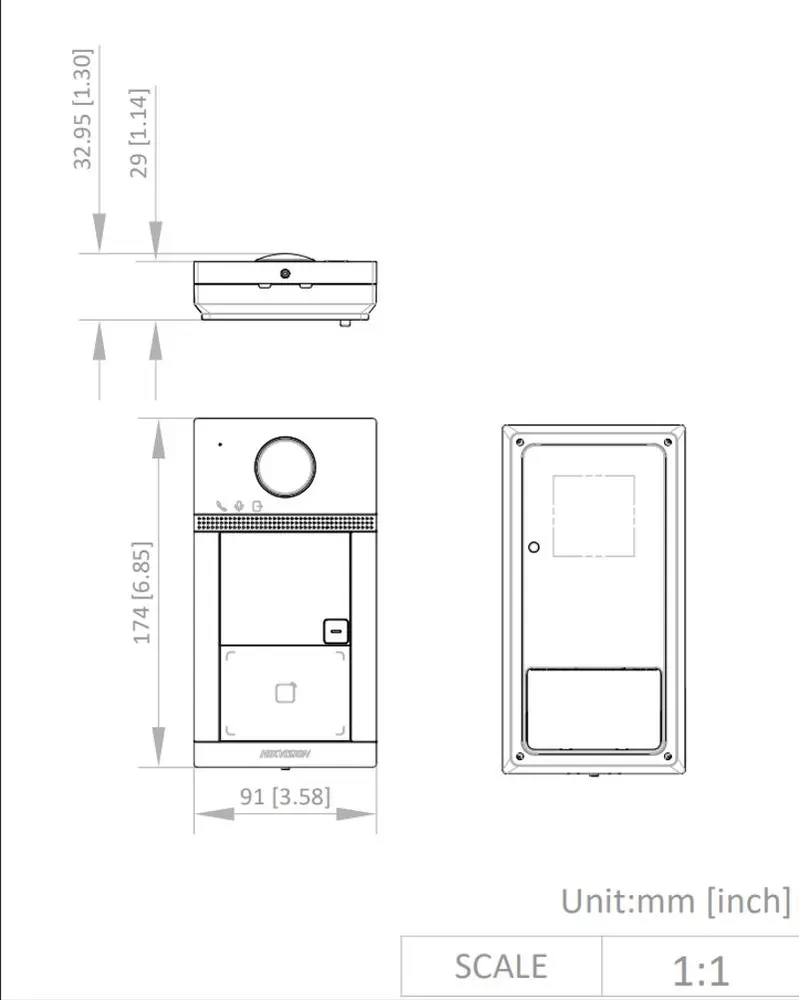

| Dimension (W × H × D) | 174 mm × 91 mm × 29 mm (6.9" × 3.6" × 1.1") |
| Application environment | Outdoor |
| Power consumption | ＜ 10 W |
| Language | English, Arabic, European French, Russian, European Spanish, Latin American Spanish, Italian, German, Polish, Turkish, Portuguese, Brazilian Portuguese, Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese (Taiwan), Latin American Spanish |
Tap a section to expand it.
Specifications come from Hikvision’s published datasheet for DS-KV8113-WME1(C)(O-STD) and may be revised by the manufacturer. Confirm the exact variant with us before ordering.
