| Operation system | Embedded Linux operation system |
|---|---|
| Flash | 32 MB |
| RAM | 256MB |
| Camera | 2MP HD camera |
|---|---|
| Night vision | Low illumination IR supplement mode:3 m |
| Backlight compensation | Support |
| Digital noise reduction | Support |
| WDR | True WDR |
| Field of view | Horizontal: 131° Vertical: 78° |
| Video Compression Standard | H.264; H.265; MJPEG |
| Stream | Main stream: 1080p@25fps, 720p@25fps Sub stream: 720@25fps,480@25fps |
| Motion detection | Support |
| Flash-avoid frequency | 50 Hz, 60 Hz |
| Audio input | Built-in omnidirectional microphone |
|---|---|
| Audio output | Built-in loudspeaker |
| Audio quality | Noise suppression and echo cancellation |
| Audio compression standard | G711U, G711A, G726, AAC_LC, AAC_LD, OPUS, G722.1 |
| Audio compression Rate | 64 Kbps |
| Network protocol | TCP/IP, RTSP, IPV6,ONVIF |
|---|---|
| Wired network | 10/100 Mbps Ethernet |
| RS-485 | 1 |
|---|---|
| Alarm input | 4 |
| Debugging port | 1 |
| TAMPER switch | 1 |
| Power consumption | ＜ 10 W |
|---|---|
| Working temperature | -40° C to 53° C(-40° F to 127.4° F) |
| Working humidity | 10% to 95% |
| Dimension | 138 mm × 65 mm × 27 mm |
| Installation | Surface mounting |
| Protection level | IP65 |
| Indicator | 2 |
| Power supply | IEEE802.3af, standard PoE 12 VDC |
| Operation system | Embedded Linux operation system |
|---|---|
| ROM | 32 MB |
| RAM | 128 MB |
| Processor | Embedded high performance processor |
| Screen size | 7-inch colorful TFT screen |
|---|---|
| Type | Colorful TFT screen |
| Operatiing method | Capacitive touch screen |
| Resolution | 1024 × 600 |
| Audio input | 1 built-in omnidirectional microphone |
|---|---|
| Audio compression standard | G.711u, G.711a, Opus, AAC-LD, AAC-LC, G.726, G.722.1 |
| Audio output | 1 built-in loudspeaker |
| Audio compression Rate | 64 Kbps |
| Audio quality | Noise suppression and echo cancellation |
| Volume adjustment | Adjustable |
| Notice capacity | 200 |
|---|---|
| Linked network camera capacity | 16 |
| Linked indoor extensions capacity | 16 |
| Linked doorphone capacity | 17 |
| Network protocol | TCP/IP, RTSP, SIP, IPv6, ONVIF |
|---|---|
| Wi-Fi | WiFi 802.11b/g/n |
| Bluetooth | Reserved |
| Alarm input | 8 |
|---|---|
| Network interface | 1 RJ-45 10/100Mbps self-adaptive |
| RS-485 | 1 |
| TF card | Support TF card, up to 128 G |
| Power supply output | Max. 12VDC 0.2 A (Only when powered by PoE) |
| Debugging port | 1 |
| Relay | 2 relays, Max. 30VDC 0.3A |
| Power supply | IEEE802.3af, Standard PoE,12 VDC |
|---|---|
| Power consumption | ≤ 12 W |
| Working temperature | -10 °C to 50 °C (14 °F to 122 °F) |
| Working humidity | 10% to 90% (no-condensing) |

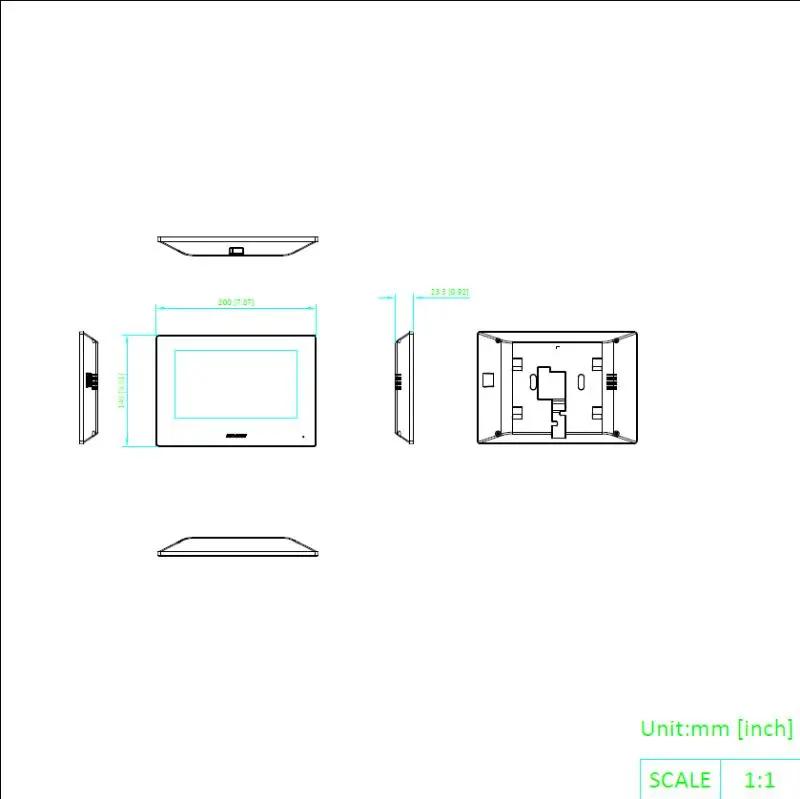

| Dimension (W × H × D) | 200 mm × 140 mm × 23.3 mm (7.87" × 5.51" × 0.92") |
| Installation | Surface mounting |
| Application environment | Indoor |
| Without package: 339.1 g (0.75 lb),With package: 562.4g (1.24 lb) | |
| Language | English, Arabic, French, Russian, Spanish, Spanish (Latin America), Italian, German, Polish, Turkish, Portuguese, Portuguese (Brazil), Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese |
Tap a section to expand it.
Specifications come from Hikvision’s published datasheet for DS-KIS603-P(C)(O-STD) and may be revised by the manufacturer. Confirm the exact variant with us before ordering.
