Talk to us for project and volume pricing, or for a quote that includes cabling, installation and configuration.
| Operation system | Linux |
|---|---|
| ROM | 32 MB |
| RAM | 256 MB |
| Processor | Embeded high performance processor |
| Lens | 1 |
|---|---|
| Resolution | Main stream: 1920 × 1080p, 720p Sub stream: 640 × 480p |
| FOV | Horizontal: 131° Vertical: 78° |
| Wide dynamic range (WDR) | Support 120 dB |
| Supplement light | IR light, up to 3 m |
| Video compression standard | H.264; H.265; MJPEG |
| Audio input | 1 built-in omnidirectional microphone |
|---|---|
| Audio compression standard | G.711 U, G.711 A, Opus, AAC-LD, AAC-LC, G.726, G.722.1 |
| Audio output | 1 built-in loudspeaker |
| Audio compression bitrate | 64 Kbps |
| Audio quality | Noise suppression and echo cancellation |
| Volume adjustment | Adjustable |
| User capacity | 2000 |
|---|---|
| Card capacity | 10000 |
| Network protocol | TCP/IP, RSTP, IPV6, ONVIF |
|---|---|
| Wi-Fi | IEEE802.11b, IEEE802.11g, IEEE802.11n |
| Bluetooth | Not supported. |
| Alarm input | 4 |
|---|---|
| Network interface | 1 RJ-45, 10/100 Mbps self-adaptive |
| TAMPER | 1 |
| Exit button | 1 |
| RS-485 | 1 |
| TF card | Reserved |
| Lock control | 1 relay, Max. 30 VDC 2 A |
| Door contact input | 1 |
| Button | 1 physical button |
|---|---|
| Installation | Surface mounting |
| Indicator | 2 |
| Net weight: 0.190 kg Gross weight: 0.414 kg | |
| Protective level | IP65 |
| Working temperature | -40 °C to 55 °C(-40 °F to 131 °F) |
| Working humidity | 10% to 95% (no-condensing) |

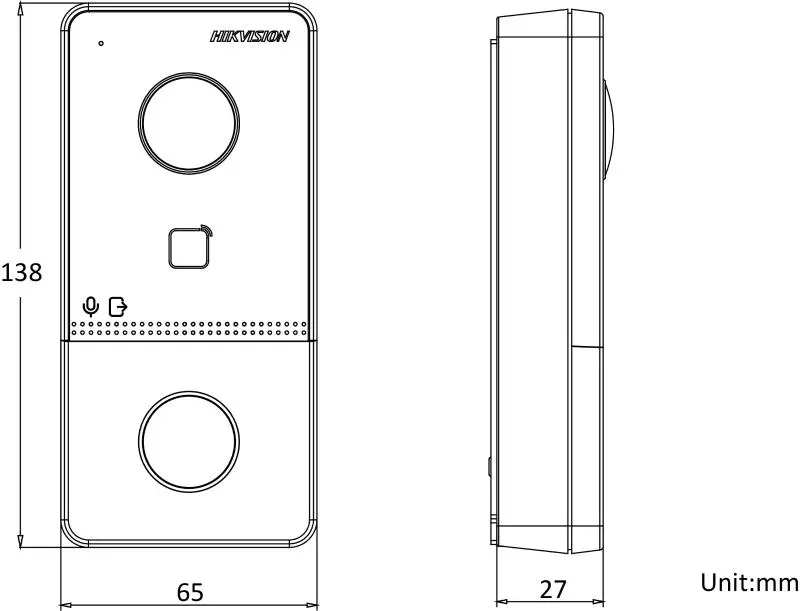

| Dimension (W × H × D) | 138 mm × 65 mm × 27 mm (5.4" × 2.6" × 1.1") |
| Application environment | Outdoor |
| Power consumption | ＜ 10 W |
| Language | English, Arabic, European French, Russian, European Spanish, Latin American Spanish, Italian, German, Polish, Turkish, Portuguese, Brazilian Portuguese, Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese (Taiwan), Latin American Spanish |
| Power supply | 12 VDC,Standard PoE, af |
Tap a section to expand it.
Specifications come from Hikvision’s published datasheet for DS-KV6113-WPE1(C)(O-STD) and may be revised by the manufacturer. Confirm the exact variant with us before ordering.
