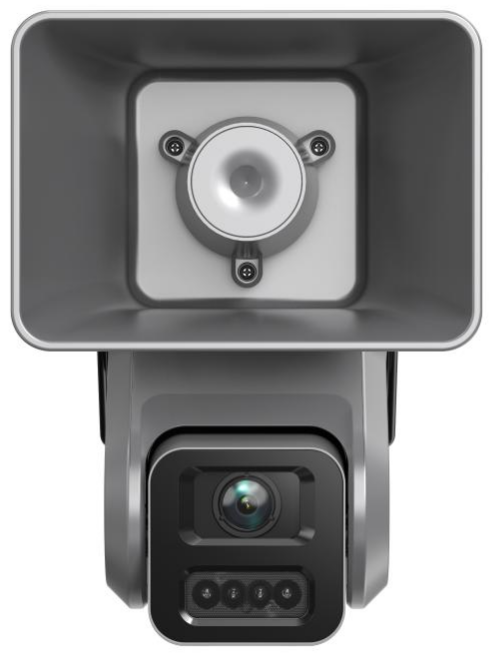

7W Motorized 4MP Horn Speaker — DS-QACAM07G1-4LIZSU(O-STD) — view 1

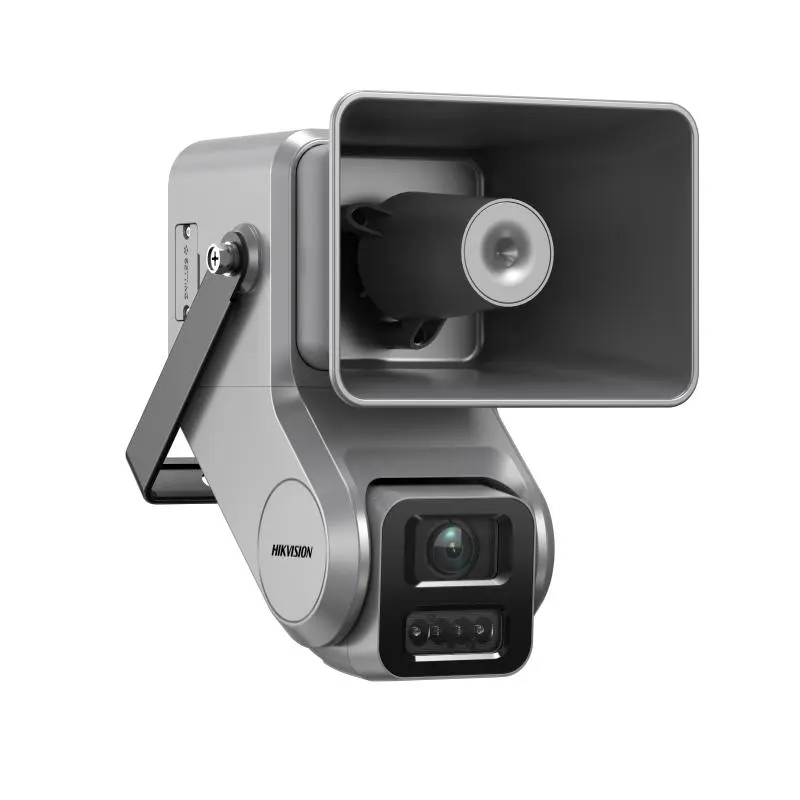

7W Motorized 4MP Horn Speaker — DS-QACAM07G1-4LIZSU(O-STD) — view 2

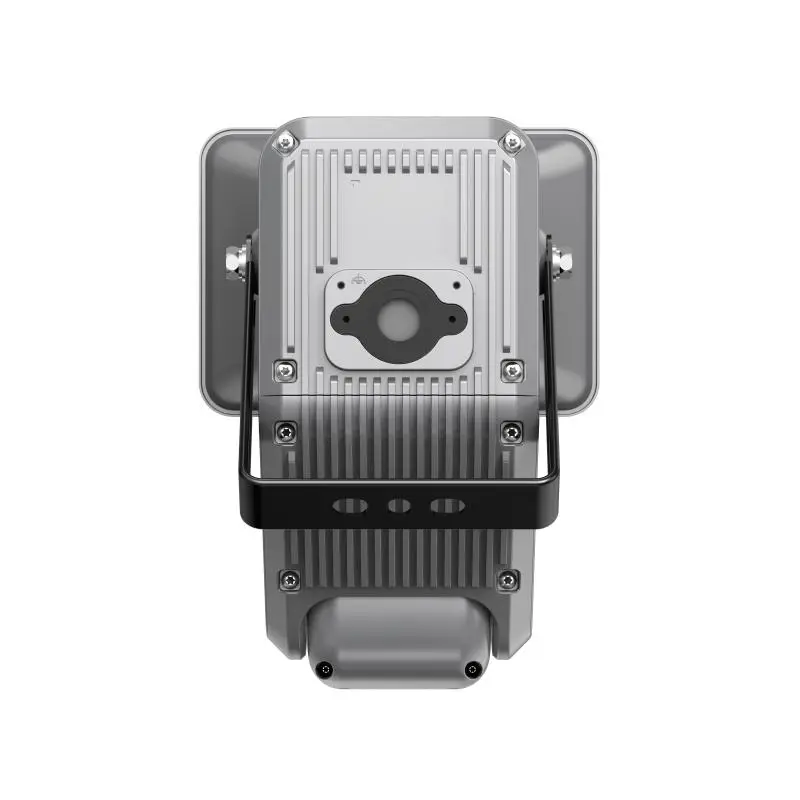

7W Motorized 4MP Horn Speaker — DS-QACAM07G1-4LIZSU(O-STD) — view 3

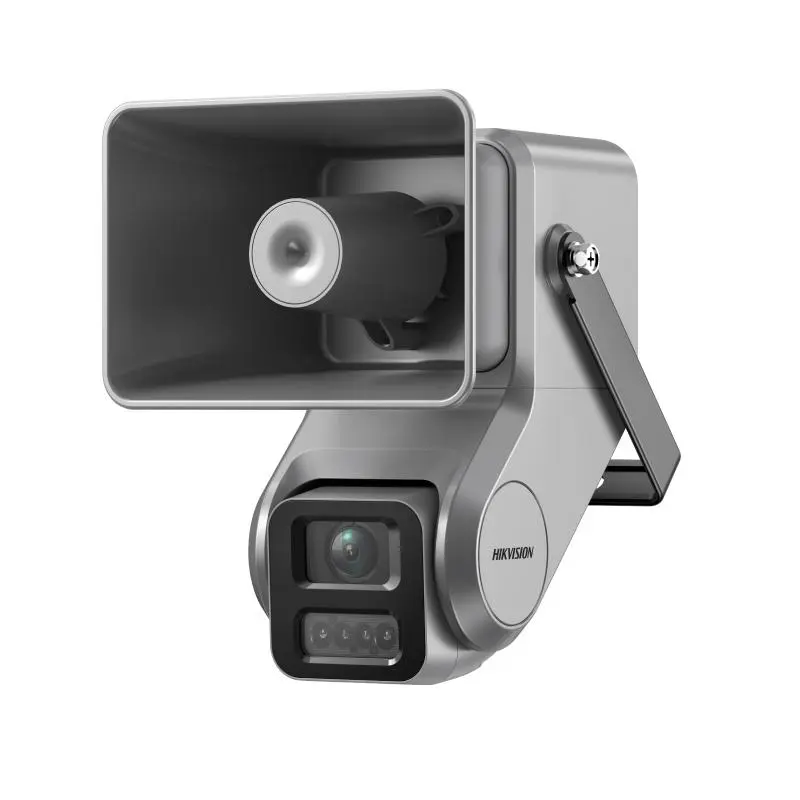

7W Motorized 4MP Horn Speaker — DS-QACAM07G1-4LIZSU(O-STD) — view 4

7W Motorized 4MP Horn Speaker — DS-QACAM07G1-4LIZSU(O-STD) — view 5

7W Motorized 4MP Horn Speaker

Name: 7W Motorized 4MP Horn Speaker
Brand: Hikvision
SKU: DS-QACAM07G1-4LIZSU(O-STD)
Price: 56320 KES
Availability: InStock

DS-QACAM07G1-4LIZSU(O-STD)

KES 56,320 per unit

✓ Genuine Hikvision stock — manufacturer warranty support

Talk to us for project and volume pricing, or for a quote that includes cabling, installation and configuration.

Enquire on WhatsApp Call 0737 454 891 Request a quote

Brand: Hikvision
Model: DS-QACAM07G1-4LIZSU(O-STD)
Category: PA
Units per carton: 2

Key features

Embedded open-platform camera provides professional image effects and good image input for algorithms
Support AI perimeter protection to improve image recognition accuracy and reduce false alarms
Support functions such as wide dynamic range, backlight compensation, defog, and electronic image stabilization
Up to 4 MP resolution, and at this resolution, it can output 25 fps/30 fps real-time image, making the image smoother
Support two-way audio function and can be used with HikCentral Professional
Support output of five different encoding parameter streams separately, with up to 20 concurrent streams
Support standard MicroSD, MicroSDHC, and MicroSDXC cards, up to 512 GB
Power supply: 12 VDC 2.125 A; PoE+: 802.3at, Type 2, Class 4
Built-in 7 W speaker, the outdoor loudspeaker distance can reach up to 100 m
Dedicated large scale AI model for perimeter protection, reduce false alarms by 90% compared to conventional AI cameras

Specifications

Camera7

Image Sensor	1/3" Progressive Scan CMOS
Max. Resolution	2560 × 1440
Min. Illumination	Color: 0.005 Lux @(F1.6, AGC ON) Black&White: 0 Lux with IR
Shutter Time	1 s to 1/100,000 s
Day & Night	ICR
Angle Adjustment	Vertical: 0° to 80°
Adjustment Method	Manual Adjustment

Lens5

FOV	Horizontal FoV: 99° to 30.4°, Vertical FoV: 52.9° to 17.2°, Diagonal FoV: 117.7° to 34.9°
Focus	Auto
Iris Type	Fixed
Aperture	F1.6
Focal Length	2.8 to 12 mm

DORI1

DORI	Wide: D(Detect): 67.2 m, O(Observe): 26.6 m, R(Recognize): 13.44 m, I(Identify): 6.72 m Tele: D(Detect): 204 m, O(Observe): 80.9 m, R(Recognize): 40.8 m, I(Identify): 20.4 m The DORI values are calculated using pixel densities for different use cases as recommended by the EN 62676-4 standard.

Deep Learning Function2

Perimeter Protection	Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle) Dedicated large scale AI model for perimeter protection, reduce false alarms by 90% compared to conventional AI cameras
Metadata	Intrusion detection,line crossing detection,region entrance detection,region exiting detection

Microphone6

Type	electret
Amount	2
Frequency Response	100 Hz to 20 kHz
Sensitivity	-32 dBV/Pa
Sampling Rate	48 kHz
Quantization Bits	16 bit

Speaker7

Impedance	8 Ω
Rated Power	7 W
Total Harmonic Distortion (THD)	5 %
Sensitivity(1 m, 1 W)	107 dB
Maximum Sound Pressure Level	115 dBSPL
Frequency Response	500 Hz to 6 kHz
Speaker Unit	Dome Tweeter

Function2

Audio Algorithm	AEC, NS, AGC, DRC
Two-Way Audio	Support

Network7

Network Protocol	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, WebSocket, WebSockets
Interface Protocol (API)	Open Network Video Interface, ISAPI, ISUP5.0
User Management	Up to 32 users. 3 user levels: administrator, operator, and user
Network Security	Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2
Network Storage	Support MicroSD/MicroSDHC/MicroSDXC cards (up to 512 GB) with automatic network replenishment and local storage, NAS (NFS, SMB/CIFS), Together with high-end Hikvision memory card, memory card encryption and health detection are supported
Browser	Plug-in required live view: IE10, IE11. Local service: Chrome 57.0+, Firefox 52.0+. Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 12+
Client	iVMS-4200, HikConnect, HikCentral Professional

Illuminator4

Supplement Light Type	Hybrid (IR and White Light)
Supplement Light Range	White Light: Up to 20 m,IR: Up to 50 m
Smart Supplement Light	Yes
IR Wavelength	850 nm


Image Parameters Switch	Support
Image Settings	Saturation, brightness, contrast, sharpness, white balance, adjustable by client software or web browser
Image Enhancement	BLC, HLC, 3D DNR, Defog, EIS
White Balance	Auto, Manual
Day/Night Switch	Day, Night, Auto, Schedule, Alarm Trigger

Audio6

Audio Sampling Rate	8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
SNR (A-Weighted)	85 dB
Audio Bit Rate	64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32~192 Kbps (MP2L2)/16~64 Kbps (AAC-LC)/8~320 Kbps (MP3)
Audio Compression	G.711a/G.711u/G.722.1/G.726/MP2L2/PCM/AAC-LC/MP3
Audio Type	Mono sound
Environment Noise Filtering	Support

Interface7

Alarm	1 input, 1 output
Network Interface	1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
Local Storage	8 GB EMMC
Reset	1
RS-485	1
MicroSD	Built-in MicroSD/MicroSDHC/MicroSDXC slot, up to 512 GB
Power Interface	1 power input, phoenix terminal

Event3

Basic Event	Motion detection, video tampering alarm, alarm input, exception, video quality diagnosis, defocus detection, audio exception detection, scene change detection
Linkage	Upload to FTP/NAS/SD card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing
Smart Event	Line crossing detection, intrusion detection, region entrance detection, region exiting detection

General11

Power	PoE: 42.5 V to 57 V, 0.447 A to 0.6 A, max. 25.5W,12 VDC, 2.125 A, max. 25.5 W
Material	Metal

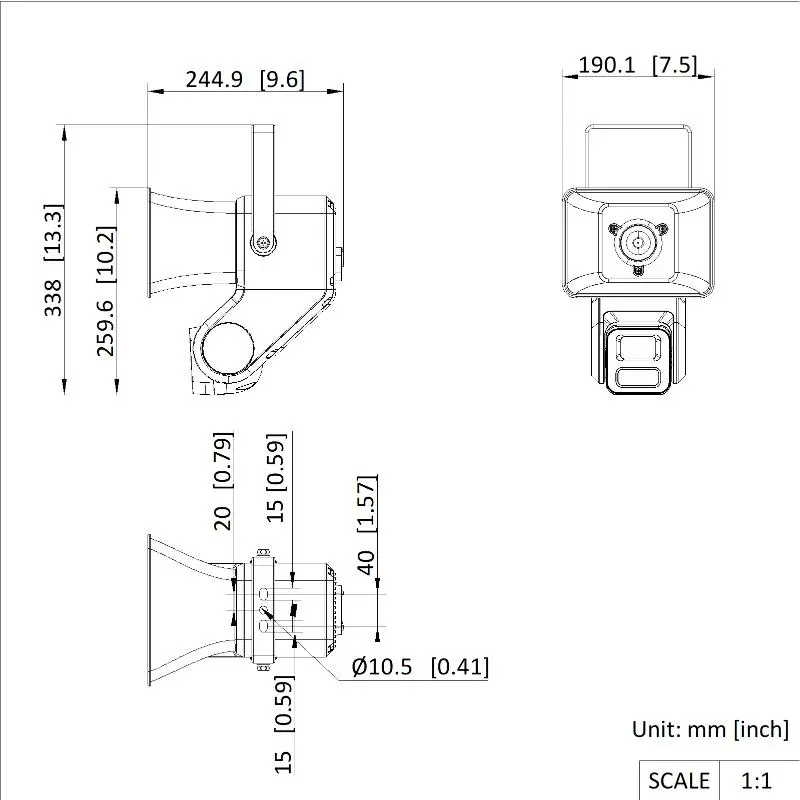

Dimension	338 mm × 244.9 mm × 190.1 mm (13.31” × 9.64” × 7.48”)
Package Dimension	420 mm × 280 mm × 316 mm (16.54” × 11.02” × 12.44”)
	3.8 kg (8.38 lb.)
With Package Weight	5.07 kg (11.18 lb.)
Language	English, Bulgarian, Czech, Danish, German, Greek, Spanish (European), Estonian, Persian, Finnish, French (European), Hebrew, Croatian, Hungarian, Indonesian, Italian, Japanese, Kazakh, Korean, Lithuanian, Latvian, Dutch, Norwegian, Polish, Portuguese (European), Portuguese (Brazilian), Romanian, Russian, Slovak, Slovenian, Serbian, Swedish, Thai, Turkish, Ukrainian, Uzbek, Vietnamese, Traditional Chinese (Taiwan)
Color	Gray
Operating Temperature	-30 °C to 60 °C (-22 °F to 140 °F)
Operating Humidity	Humidity 95% or less (non-condensing)
Bracket Adjustment Angle	-53° to 165°

Approval4

Protection	IP67
EMC	Class B
Safety	CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017,
Environment	CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006

Video13

H.264 Type	BaseLine Profile/Main Profile/High Profile
H.265 Type	Main Profile
Main Stream	50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Sub-Stream	50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480)
Fourth Stream	50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480)
Fifth Stream	50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480)
Third Stream	50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Simultaneous Live View	Up to 20 Channels
Picture Overlay	LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.
Bit Rate Control	CBR, VBR
Region of Interest (ROI)	4 fixed regions for main stream, sub-stream, third stream, fourth stream, and fifth stream
Scalable Video Coding (SVC)	Support
Target Cropping	Support

Tap a section to expand it.

Download datasheet (PDF)View on hikvision.com

Specifications come from Hikvision’s published datasheet for DS-QACAM07G1-4LIZSU(O-STD) and may be revised by the manufacturer. Confirm the exact variant with us before ordering.
