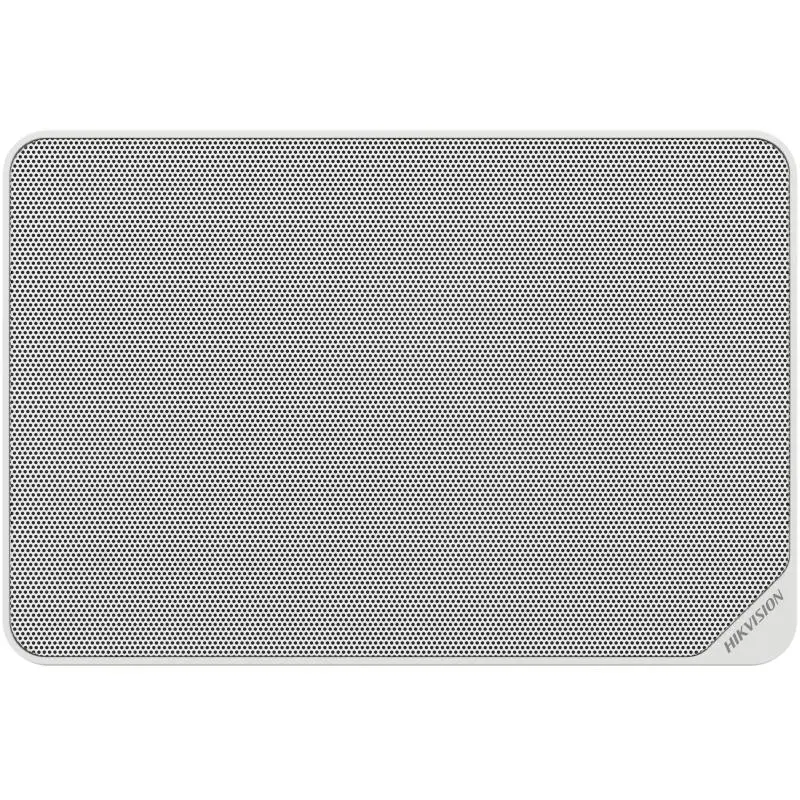

Analog Cabinet Speaker 20W — DS-QAE0120G1R(O-STD) — view 2

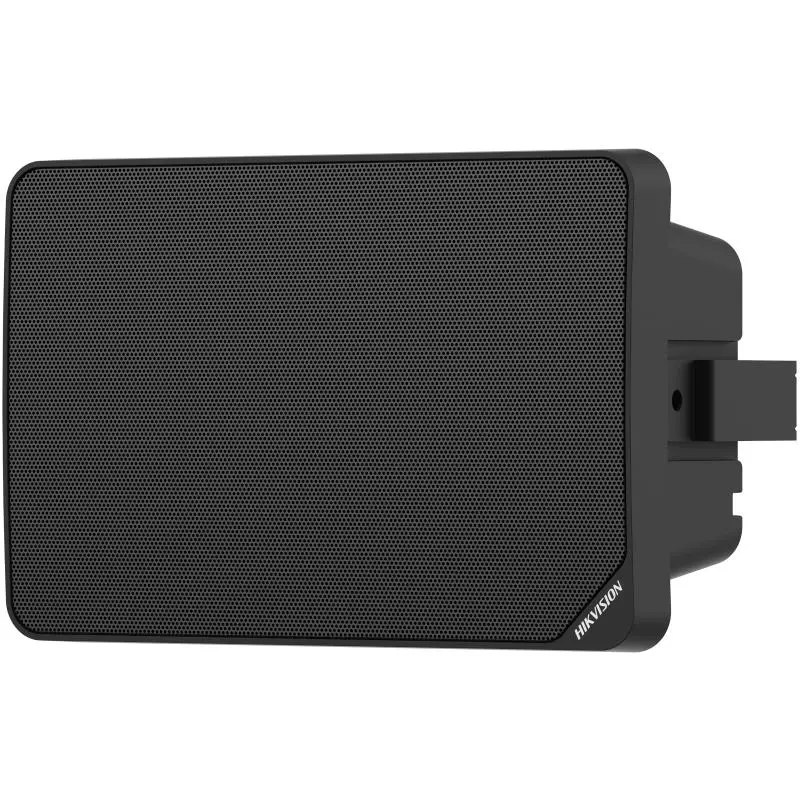

Analog Cabinet Speaker 20W — DS-QAE0120G1R(O-STD) — view 3

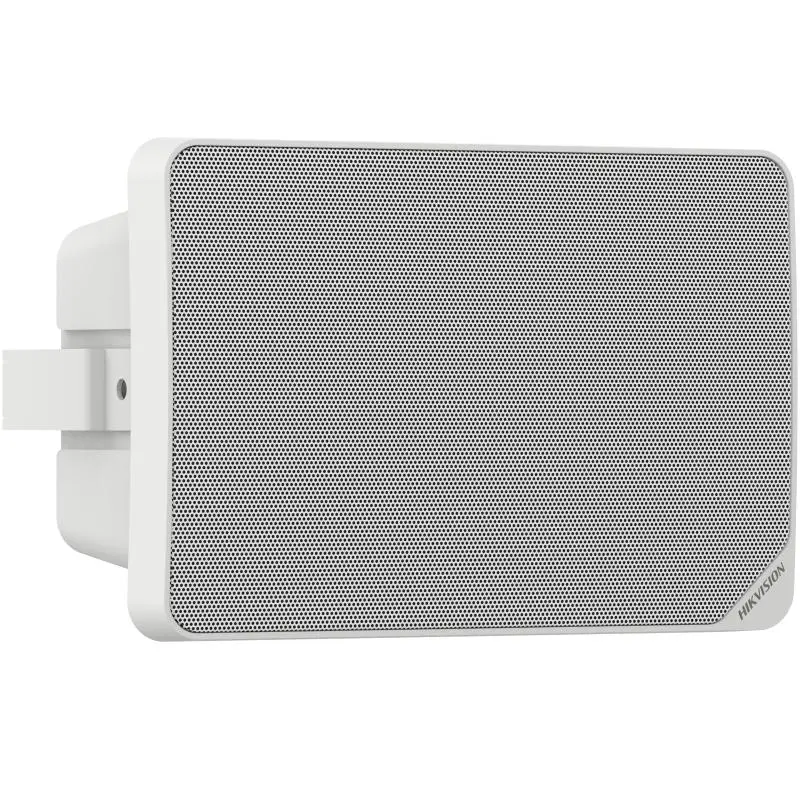

Analog Cabinet Speaker 20W — DS-QAE0120G1R(O-STD) — view 4

Analog Cabinet Speaker 20W — DS-QAE0120G1R(O-STD) — view 5

Analog Cabinet Speaker 20W

Name: Analog Cabinet Speaker 20W
Brand: Hikvision
SKU: DS-QAE0120G1R(O-STD)
Price: 7810 KES
Availability: InStock

DS-QAE0120G1R(O-STD)

KES 7,810 per unit

✓ Genuine Hikvision stock — manufacturer warranty support

Talk to us for project and volume pricing, or for a quote that includes cabling, installation and configuration.

Enquire on WhatsApp Call 0737 454 891 Request a quote

Brand: Hikvision
Model: DS-QAE0120G1R(O-STD)
Category: PA
Units per carton: 4

Key features

5.25′′ × 1
Rated Power: 70 V: 5 W/10 W/15 W/20 W, 100 V: 5 W/10 W/15 W/20 W
Sensitivity(1 m, 1 W): 90 dB ± 3 dB
Max. SPL: 103 dB
Frequency Response: 130 Hz to 17.5 kHz
White or black appearance optional

Specifications

Speaker8

Rated Power	70 V: 5 W/10 W/15 W/20 W 100 V: 5 W/10 W/15 W/20 W
Impedance	8 Ω
Max. Acoustic Pressure	103 dBSPL
Sensitivity(1 m, 1 W)	90 dB ± 3dB
Direction	All directions
Frequency Response	130 Hz to 17.5 kHz
Speaker Unit	5.25′′ × 1
Coverage Angle	Horizontal: 135° Vertical: 130°

Interface1

Audio In	Fixed pressure in 100 V/Fixed pressure in 70 V/Fixed resistance input 8 Ω × 1

General9

Material	Main body&Front cover: plastic, bracket: metal
Operating Temperature	-30 °C to 60 °C (-22 °F to 140 °F)
Operating Humidity	＜90% (No condensation)

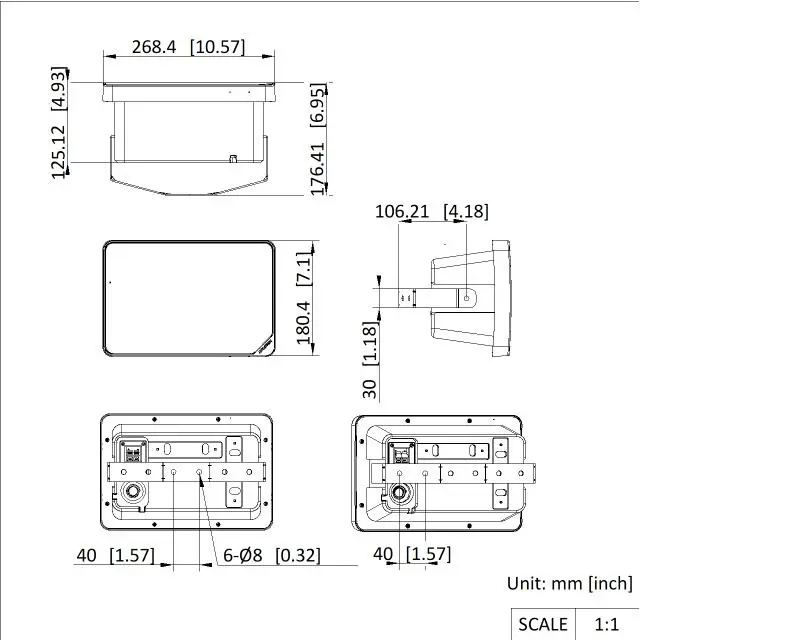

Dimension	268.4 mm × 180.4 mm × 125.12 mm (10.57" × 7.1" × 4.93")
Package Dimension	340 mm × 306 mm × 180 mm (13.39" × 12.05" × 7.09")
	Approx. 1.5 kg (3.3 lb.)
Color	White or black appearance optional
With Package Weight	Approx. 2 kg (4.4 lb.)
Packing List	Device × 1 U-shaped bracket × 1 Screw pack × 1 Installation sticker × 1 Regulatory Compliance and Safety Information × 1

Tap a section to expand it.

View on hikvision.com

Specifications come from Hikvision’s published datasheet for DS-QAE0120G1R(O-STD) and may be revised by the manufacturer. Confirm the exact variant with us before ordering.
