| Audio In | Green end (terminal block), constant voltage input: 100 V, COM |
|---|
| Impedance | 8 Ω |
|---|---|
| Rated Power | 20 W |
| Sensitivity(1 m, 1 W) | 89.5 dB ± 3 dB |
| Max. Acoustic Pressure | 96 dBSPL |
| Frequency Response | 100 Hz to 20 kHz |
| Speaker Unit | Full frequency 4′′ × 1, high frequency 0.75′′ × 1 |
| Coverage Angle | Horizontal: 150° Vertical: 160° |
| Protection | IP66 |
|---|
| Color | White |
|---|---|
| Material | Front cover: steel mesh, back cover: plastic |

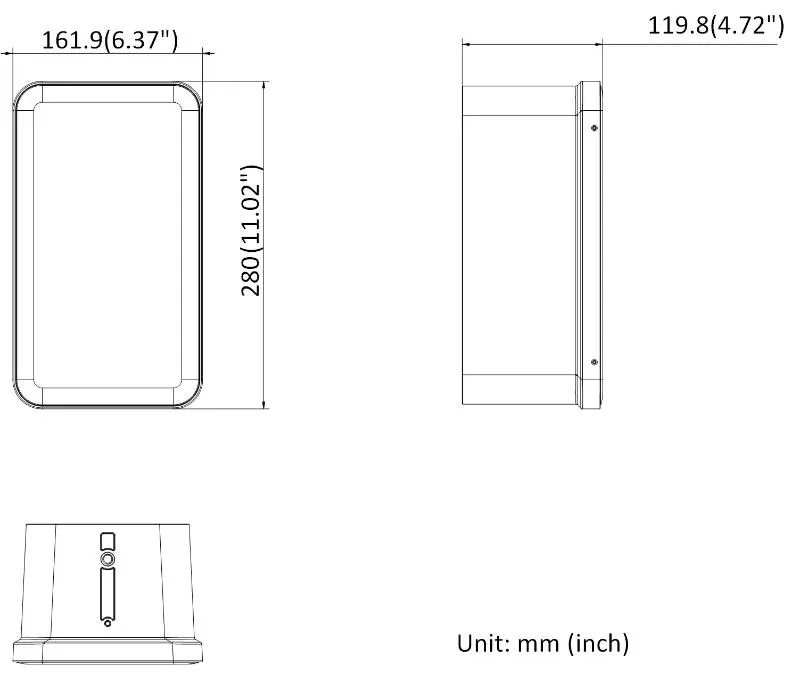

| Dimension | 280 mm × 161.9 mm × 119.8 mm (11.02"× 6.37" × 4.72") |
| Approx. 1862.4 g (4.11 lb.) | |
| Package Dimension | 340 mm × 306 mm × 175 mm (13.39"× 12.05" × 6.89") |
| With Package Weight | 2610.2 g (5.75 lb.) |
| Packing List | Device × 1 Screw pack × 1 L-Bracket × 2 Regulatory Compliance and Safety Information × 1 |
| Operating Temperature | -25 °C to 55 °C(-13 °F to 131 °F) |
| Operating Humidity | ＜90% (No condensation) |
Tap a section to expand it.
Specifications come from Hikvision’s published datasheet for DS-QAE0420G1-V(O-STD) and may be revised by the manufacturer. Confirm the exact variant with us before ordering.
