| Operation system | LINUX |
|---|---|
| Processor | Embeded high performance processor |
| Supplement light | IR light, up to 3 m |
|---|---|
| Resolution | Main stream: 4MP(2688x1520P), 2MP(1920x1080P), 1MP(1280x720P) Sub stream: 2MP(1920x1080P), 1MP(1280x720P), 0.3MP(640x480P) |
| Lens | 1 |
| FOV | Horizontal: 150°; Vertical: 75° |
| Video compression standard | H.264; H.265; MJPEG |
| Volume adjustment | Adjustable |
|---|---|
| Audio Performance | 50cm 80dB (Maximum: 50cm 83dB) |
| User capacity | 2000 |
|---|---|
| Card capacity | 6000 |
| Network protocol | TCP/IP, SIP, RSTP, IPV6, ONVIF |
|---|---|
| Wi-Fi | 2.4GHz |
| Bluetooth | Supported |
| Wi-Fi Protocol | IEEE802.11b;IEEE802.11g;IEEE802.11n;IEEE802.11ax |
| Wi-Fi Type | WiFi 6 |
| Card Type | M1 Card |
|---|---|
| Card reading frequency | 13.56 MHz |
| Authentication mode | Card;Bluetooth;PIN Code;Hik-Connect;Indoor Station |
| Card Reading Distance | M1card:2to2.5cm |
| Mobile APP | Hik-Connect |
|---|---|
| Motion Detection | Support |
| Playback | Support |
| Call Elevator | Support |
| Smart Features | Sound Classification Detection: Scream, Glass Breaking Sound, Crying Sound (Recommended Detection Distance: 3 m) |
| Network interface | 1 RJ-45, 10/100 Mbps self-adaptive |
|---|---|
| Exit button | 1 |
| Lock control | 2 relay, Max. 30 VDC 2 A |
| RS-485 | 1 |
| Door contact input | 1 |
| Alarm input | 4(includeExit button and Door contact input) |
| Alarm output | 0 |
| TAMPER | 1 |
| TF card | Support TF card, up to 128 G |
| Supported TF Format | FAT32;exFAT |
| Button | 1 physical button(s) |
|---|---|
| Indicator | 3 |
| Power consumption | ＜ 10 W |
| Working temperature | -40 °C to 60 °C (-40 °F to 140 °F) |
| Working humidity | 10% to 90% (no-condensing) |
| Application environment | Outdoor |
| Dimension (W × H × D) | 164 mm × 69 mm × 24.7 mm (6.46" × 2.72" × 0.97") |
| Protective level | IP65 |
| Installation | Surface mounting |
| Without package: 273 g (0.61 lb),With package: 431g (0.95 lb) | |
| Material | Front Shell and Rear Shell Material: Plastic Viewing Window Panel Material: Glass |
| Power supply | 12 VDC, 1.2 A,IEEE 802.3 at, standard PoE |
| Language | English, Arabic, European French, Russian, European Spanish, Latin American Spanish, Italian, German, Polish, Turkish, Portuguese, Brazilian Portuguese, Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese (Taiwan), Latin American Spanish |
| Power Supply Output | Max. 12 VDC, 1 A |
| Audio input | 1 built-in omnidirectional microphone |
|---|---|
| Audio output | 1 built-in loudspeaker |
| Audio quality | Noise suppression and echo cancellation |
| Audio compression standard | G.711u, G.711a, Opus, AAC-LD, AAC-LC, G.726, G.722.1 |
| Audio compression bitrate | 16~64Kps |
| Wired network | 1 RJ-45, 10/100 Mbps self-adaptive |
|---|---|
| Wireless network | 2.4 GHz, IEEE802.11b, IEEE802.11g, IEEE802.11n |
| Network protocol | TCP/IP, SIP, RTSP |
| RS-485 | 1 RS-485 (Half duplex) |
|---|---|
| Alarm input | 8-ch alarm inputs |
| Relay output | 2 |
| TF card | Support TF card, up to 128 G |
| Power consumption | ≤ 5 W |
|---|---|
| Power supply | 12 VDC, 1 A,IEEE802.3af, Standard PoE |
| Working temperature | -10 °C to 50 °C (14 °F to 122 °F) |
| Working humidity | 10% to 90% (no-condensing) |

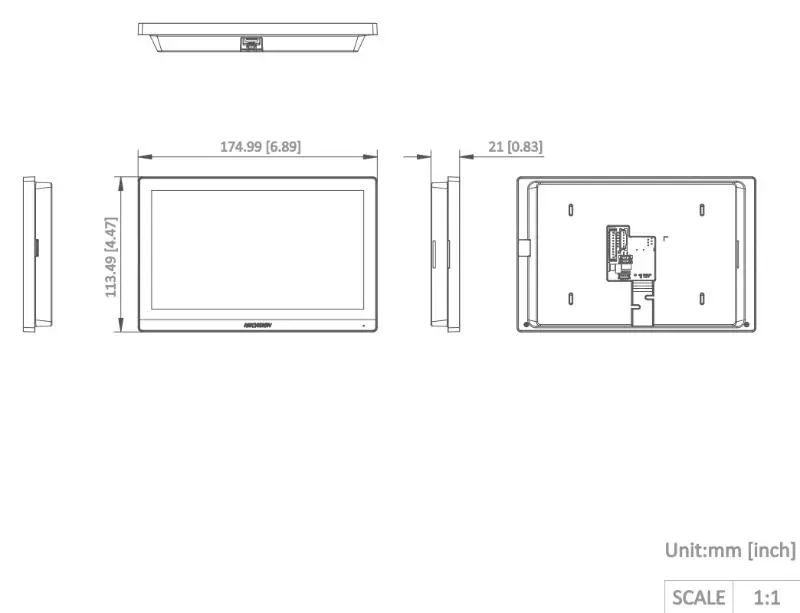

| Dimension (L x W x H) | 174.99 mm × 113.49 mm × 21 mm (6.89" × 4.47" × 0.83") |
Tap a section to expand it.
Specifications come from Hikvision’s published datasheet for DS-KIS612-P(O-STD) and may be revised by the manufacturer. Confirm the exact variant with us before ordering.
