Talk to us for project and volume pricing, or for a quote that includes cabling, installation and configuration.
| Operation system | Linux |
|---|---|
| ROM | 32 MB |
| RAM | 128 MB |
| Processor | Embeded high performance processor |
| Screen size | 7-inch |
|---|---|
| Operation method | Capacitive touch screen |
| Type | Colorful TFT |
| Resolution | 1024 × 600 |
| Audio input | 1 built-in omnidirectional microphone |
|---|---|
| Audio compression standard | G.711 U, G.711 A, G.722.1 |
| Audio output | 1 built-in loudspeaker |
| Audio compression bitrate | 64 Kbps |
| Audio quality | Noise suppression and echo cancellation |
| Volume adjustment | Adjustable |
| Message capacity | TF card inser ted: 200 captured pictures, 200 alarm records Without TF card: 2 MB RAM for picture storage; The storage number is decided by the picture size, 200 alarm records |
|---|---|
| Notice capacity | 200 |
| Linked indoor extensions capacity | 16 |
| Linked doorphone capacity | 17 |
| Linked network camera capacity | 16 |
| Network protocol | TCP/IP, SIP, RTSP |
|---|---|
| Wi-Fi | 2.4 GHz, IEEE802.11b, IEEE802.11g, IEEE802.11n |
| Alarm input | 8 |
|---|---|
| Network interface | 1 RJ-45 10/100 Mbps self-adaptive |
| RS-485 | 1 RS-485 (Half duplex) |
| TF card | Support TF card, up to 128 G |
| Alarm output | 2 relays, Max. 30 VDC 0.3 A |
| Installation | Surface mounting |
|---|---|
| Net weight: 355 g (0.8 lb) Gross weight: 683 g (1.5 lb) | |
| Working temperature | -10 °C to 50 °C (14 °F to 122 °F) |
| Working humidity | 10% to 90% (no-condensing) |

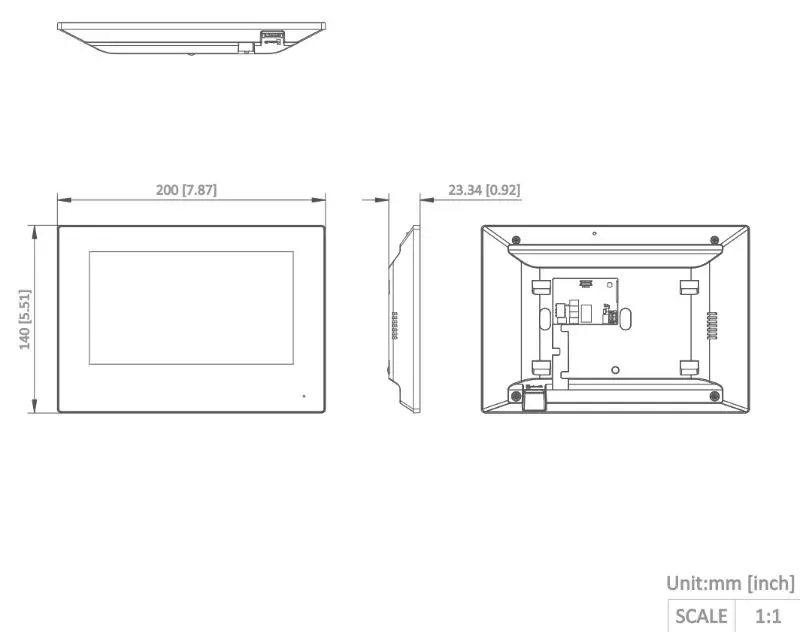

| Dimension (W × H × D) | 200 mm × 140 mm × 15.1 mm (7.9" × 5.5" × 0.6") |
| Application environment | Indoor |
| Power consumption | ≤ 5 W |
| Language | English, Arabic, French, Russian, Spanish, Spanish (Latin America), Italian, German, Polish, Turkish, Portuguese, Portuguese (Brazil), Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese |
Tap a section to expand it.
Specifications come from Hikvision’s published datasheet for DS-KH6320-WTE1(O-STD) and may be revised by the manufacturer. Confirm the exact variant with us before ordering.
