Networking

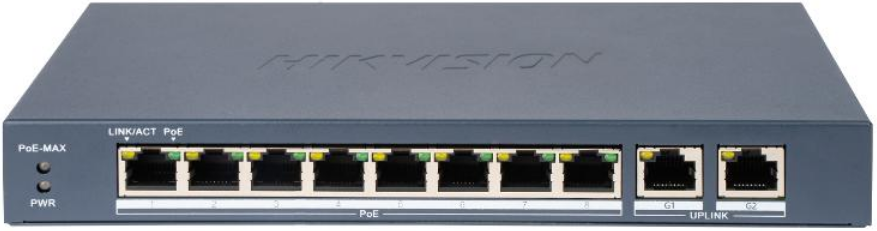

8 Port Fast Ethernet Unmanaged POE Switch

Name: 8 Port Fast Ethernet Unmanaged POE Switch
Brand: Hikvision
SKU: DS-3E0310P-E/M(B)(O-STD)
Price: 5830 KES
Availability: InStock

DS-3E0310P-E/M(B)(O-STD)

KES 5,830 per unit

✓ Genuine Hikvision stock — manufacturer warranty support

Talk to us for project and volume pricing, or for a quote that includes cabling, installation and configuration.

Enquire on WhatsApp Call 0737 454 891 Request a quote

Brand: Hikvision
Model: DS-3E0310P-E/M(B)(O-STD)
Category: Networking
Units per carton: 8

Key features

8 × 10/100 Mbps PoE port, and 2 × Gigabit RJ45 port.
IEEE 802.3at/af standard for PoE ports (Max. 80 W PoE output).
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z and IEEE 802.3ab standard.
6 kV surge protection for PoE ports.
Up to 300 m long-range transmission.
Wire-speed forwarding.
Store-and-forward switching.
Solid high-strength metal shell.
Reliable fan-free design.

Specifications

General13

Shell	Metal material
Net Weight	0.555 kg (1.22 lb)
Gross Weight	1.20 kg (2.65 lb)
Dimensions (W × H × D)	217.60 mm × 27.60 mm × 108.50 mm (8.56'' × 1.08'' × 4.27'')
Operating Temperature	0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature	–40 °C to 85 °C (–40 °F to 185 °F)
Operating Humidity	5% to 95% (no condensation)
Relative Humidity	5% to 95% (no condensation)
Power Supply	54VDC, 1.6A
Max. Power Consumption	86 W
Power Consumption in Idle	5 W
Installation Mode	Desk-Mounted,Wall-Mounted
Surge Protection	6 kV

Network Parameters5

Ports	8 × 10/100 Mbps PoE port,2 × Gigabit RJ45 port
MAC Address Table	8 K
Switching Capacity	5.6 Gbps
Packet Forwarding Rate	4.17 Mpps
Internal Cache	4 Mbits

Dialing Function1

Long Range	Ports 1 to 8 : up to 300 m. Long range performance may vary depend on camera model or cable condition.

PoE Power Supply5

PoE Standard	IEEE 802.3af;IEEE 802.3at
PoE Power Pin	End-span: 1/2(-), 3/6(+)
PoE Port	PoE: Ports 1 to 8
Max. Port Power	30 W
PoE Power Budget	80 W

Approval3

EMC	CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
Safety	CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
Chemistry	CE-RoHS (201165EU); WEEE (201219EU); Reach (Regulation (EC) No.19072006)

Tap a section to expand it.

View on hikvision.com

Specifications come from Hikvision’s published datasheet for DS-3E0310P-E/M(B)(O-STD) and may be revised by the manufacturer. Confirm the exact variant with us before ordering.
