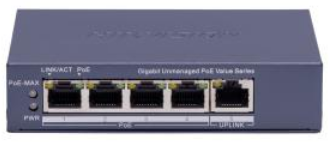

4 Port Gigabit Unmanaged POE Switch — DS-3E0505P-E/M(O-STD)(B) — view 1

4 Port Gigabit Unmanaged POE Switch — DS-3E0505P-E/M(O-STD)(B) — view 2

Networking

4 Port Gigabit Unmanaged POE Switch

Name: 4 Port Gigabit Unmanaged POE Switch
Brand: Hikvision
SKU: DS-3E0505P-E/M(O-STD)(B)
Price: 3740 KES
Availability: InStock

DS-3E0505P-E/M(O-STD)(B)

KES 3,740 per unit

✓ Genuine Hikvision stock — manufacturer warranty support

Talk to us for project and volume pricing, or for a quote that includes cabling, installation and configuration.

Enquire on WhatsApp Call 0737 454 891 Request a quote

Brand: Hikvision
Model: DS-3E0505P-E/M(O-STD)(B)
Category: Networking
Units per carton: 12

Key features

4 × Gigabit PoE port, 1 × Gigabit RJ45 port
IEEE 802.3at/af standard
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z standard
6 KV surge protection for PoE ports
PoE power management
Gigabit network access
Wire-speed forwarding and non-blocking design
Store-and-forward switching
Solid high-strength metal shell
Reliable fan-free design

Specifications

General13

Shell	Metal material
Net Weight	0.265 kg (0.58 lb)
Gross Weight	0.759 kg (1.67 lb)

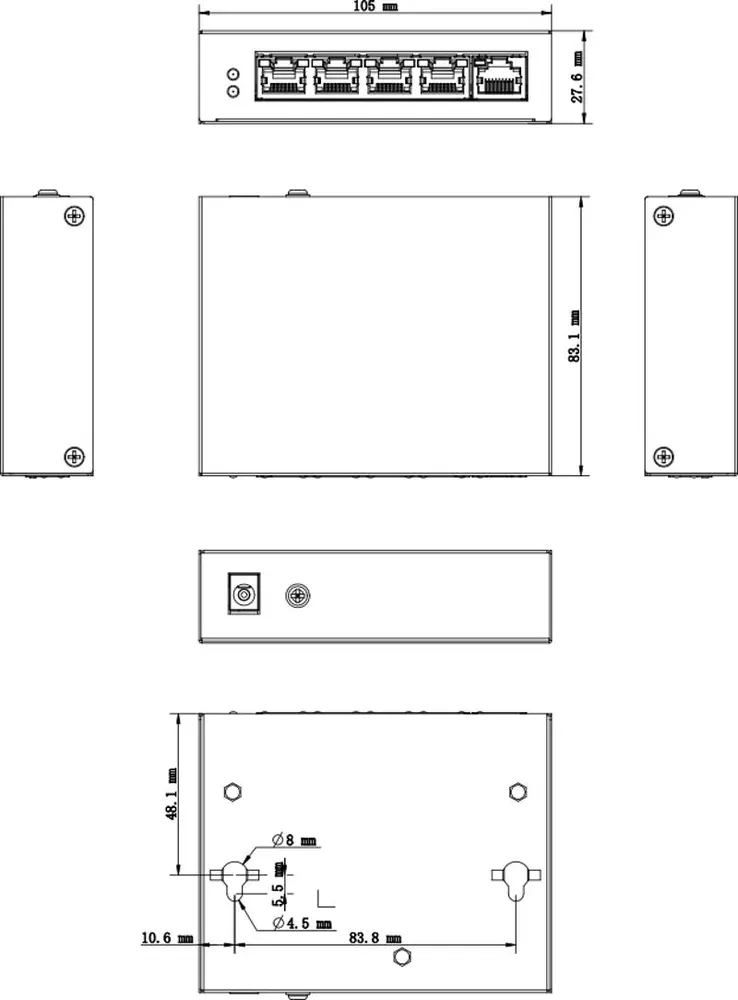

Dimensions (W × H × D)	105 mm × 27.6 mm × 83.1 mm (4.1'' × 1.1'' × 3.3'')
Operating Temperature	0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature	–40 °C to 85 °C (–40 °F to 185 °F)
Operating Humidity	5% to 95% (no condensation)
Relative Humidity	5% to 95% (no condensation)
Power Supply	48 VDC, 0.8 A
Max. Power Consumption	38 W
Power Consumption in Idle	3 W
Installation Mode	Desk-Mounted,Wall-Mounted
Surge Protection	6 KV

Network Parameters5

Ports	4 × Gigabit PoE port,1 × Gigabit RJ45 port
MAC Address Table	2 K
Switching Capacity	10 Gbps
Packet Forwarding Rate	7.44 Mpps
Internal Cache	1 Mbits

PoE Power Supply5

PoE Standard	IEEE 802.3af;IEEE 802.3at
PoE Power Pin	End-span: 1/2(+), 3/6(-)
PoE Port	PoE: Ports 1 to 4
Max. Port Power	30 W
PoE Power Budget	35 W

Approval3

EMC	FCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
Safety	UL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
Chemistry	CE-RoHS (201165EU); WEEE (201219EU); Reach (Regulation (EC) No.19072006)

Tap a section to expand it.

Download datasheet (PDF)View on hikvision.com

Specifications come from Hikvision’s published datasheet for DS-3E0505P-E/M(O-STD)(B) and may be revised by the manufacturer. Confirm the exact variant with us before ordering.
