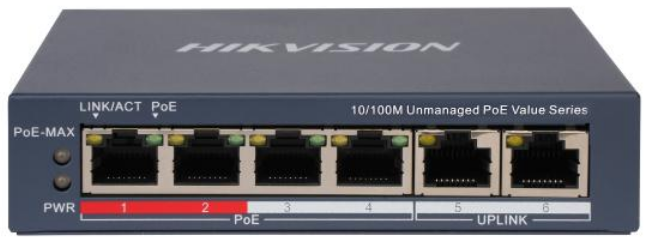

4 Port Fast Ethernet Unmanaged POE Switch — DS-3E0106P-E/M(B)(O-STD) — view 1

4 Port Fast Ethernet Unmanaged POE Switch — DS-3E0106P-E/M(B)(O-STD) — view 2

Networking

4 Port Fast Ethernet Unmanaged POE Switch

Name: 4 Port Fast Ethernet Unmanaged POE Switch
Brand: Hikvision
SKU: DS-3E0106P-E/M(B)(O-STD)
Price: 3630 KES
Availability: InStock

DS-3E0106P-E/M(B)(O-STD)

KES 3,630 per unit

✓ Genuine Hikvision stock — manufacturer warranty support

Talk to us for project and volume pricing, or for a quote that includes cabling, installation and configuration.

Enquire on WhatsApp Call 0737 454 891 Request a quote

Brand: Hikvision
Model: DS-3E0106P-E/M(B)(O-STD)
Category: Networking
Units per carton: 12

Key features

4 x 10/100Mbps PoE port, and 2 × 10/100Mbps RJ45 port.
IEEE 802.3at/af standard for PoE ports (Max. 35 W PoE output).
IEEE 802.3, IEEE 802.3u, and IEEE 802.3x standard.
6 KV surge protection for PoE ports.
Up to 300 m long-range transmission.
Wire-speed forwarding.
Store-and-forward switching.
Solid high-strength metal shell.
Reliable fan-free design.

Specifications

General13

Shell	Metal material
Net Weight	0.27 kg (0.60 lb)
Gross Weight	0.52 kg (1.15 lb)

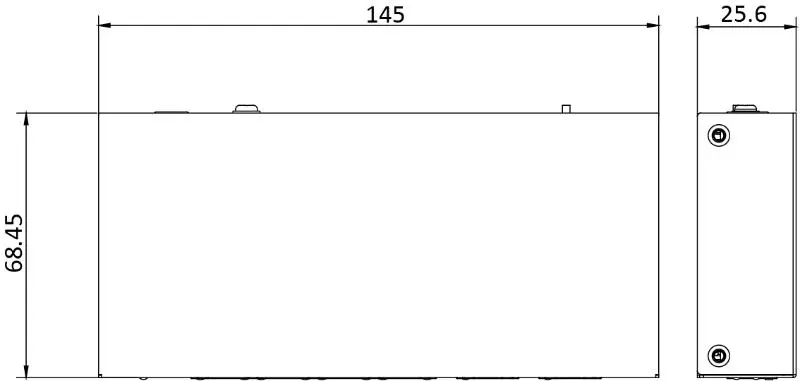

Dimensions (W × H × D)	145 mm × 68.45 mm × 25.6 mm (5.71'' × 2.69'' × 1.01'')
Operating Temperature	0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature	–40 °C to 85 °C (–40 °F to 185 °F)
Operating Humidity	5% to 95% (no condensation)
Relative Humidity	5% to 95% (no condensation)
Power Supply	48 VDC, 0.8 A
Installation Mode	Desk-Mounted,Wall-Mounted
Max. Power Consumption	38 W
Power Consumption in Idle	3 W
Surge Protection	6 KV

Network Parameters5

Ports	4 x 10/100 Mbps PoE port,2 × 10/100 Mbps RJ45 port
MAC Address Table	2 K
Switching Capacity	1.2 Gbps
Packet Forwarding Rate	0.89 Mpps
Internal Cache	768 Kbits

Dialing Function1

Long Range	Ports 1 to 4 : up to 300 m. Long range performance may vary depend on camera model or cable condition.

Software Function1

VIP Port	Ports 1 to 2: data on VIP ports is preferentially forwarded when bandwidth resources are insufficient.

PoE Power Supply5

PoE Standard	IEEE 802.3af;IEEE 802.3at
PoE Power Pin	8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
PoE Port	PoE: Ports 1 to 4
Max. Port Power	30 W
PoE Power Budget	35 W

Approval3

EMC	FCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
Safety	UL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
Chemistry	CE-RoHS (201165EU); WEEE (201219EU); Reach (Regulation (EC) No.19072006)

Tap a section to expand it.

View on hikvision.com

Specifications come from Hikvision’s published datasheet for DS-3E0106P-E/M(B)(O-STD) and may be revised by the manufacturer. Confirm the exact variant with us before ordering.
