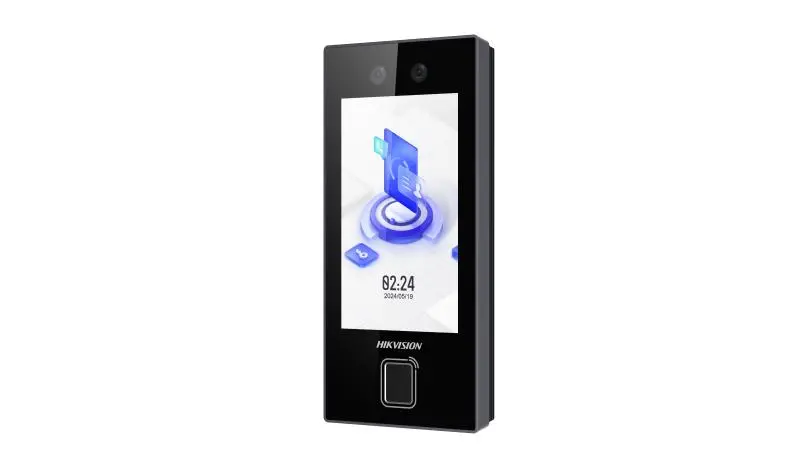

Value Series Face Access Terminal — DS-K1T344MBFWX-E1(O-STD) — view 2

Access Control

Value Series Face Access Terminal

Name: Value Series Face Access Terminal
Brand: Hikvision
SKU: DS-K1T344MBFWX-E1(O-STD)
Price: 27280 KES
Availability: InStock

DS-K1T344MBFWX-E1(O-STD)

KES 27,280 per unit

✓ Genuine Hikvision stock — manufacturer warranty support

Talk to us for project and volume pricing, or for a quote that includes cabling, installation and configuration.

Enquire on WhatsApp Call 0737 454 891 Request a quote

Brand: Hikvision
Model: DS-K1T344MBFWX-E1(O-STD)
Category: Access Control
Units per carton: 20

Key features

Supports 4.5-inch LCD touch screen, 2 Mega pixel wide-angle lens, and built-in M1 card reading module
Max.3000 faces capacity, Max.3000 fingerprints capacity, and Max.3000 cards
Face Recognition Distance: 0.3 m to 1.5 m; Duration ＜ 0.2 s/User; Accuracy rate ≥ 99%
Supports face, card, PIN, and fingerprint authentication
Two-way audio with client software, indoor station, and main station.
Supports mobile web and PC web for configuration
Powers supply by standard PoE and at the same time powers supply for door lock (12 VDC/1 A)
Supports Push SDK
Supports the following SIP servers: ASTERISK, 3CX, ELASTIX, miniSipServer, Brekeke, OpenSIPs, Kamailio.
Supports face duplicate check, preventing multiple people from using the same face.
Supports attendance-only function.

Specifications

System1

Operating system	Linux

Display4

Screen size	4.5-inch
Resolution	480 × 854
Type	LCD
Operation method	Touchable

Video2

Lens	× 2
Video standard	PAL (Default) and NTSC

Network3

Bluetooth	Support
Wired network	10/100 Mbps self adaptive
Wi-Fi	Support

Interface11

Alarm input	2
Alarm output	1
PoE	IEEE802.3at, standard PoE
Network interface	1
RS-485	1
Wiegand	1, supports Wiegand input, single direction
Lock control	1
Exit button	1
Door contact input	1
TAMPER	1
USB	1

Capacity5

User capacity	3000
Card capacity	3000
Face capacity	3000
Fingerprint capacity	3000
Event capacity	150000

Authentication5

Card type	M1 card
Card reading frequency	13.56 MHz
Face recognition duration	＜ 0.2 s
Face recognition accuracy rate	＞99%
Face recognition distance	0.3 to 1.5 m

General9

Button	No physical call button
Power supply	12 VDC, 1 A, standard PoE
Working temperature	-30 °C to 60 °C (-22 °F to 140 °F)
Working humidity	10 to 90% (No condensing)
Dimensions	165.2 mm × 75.7 mm × 25 mm (6.5" × 2.98" × 0.98")
Installation	Wall mounting
Protective level	IP65
Language	English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Turkish, French, Traditional Chinese, Kazakh, Uzbek
	Gross weight: 0.60 kg (1.33 lbs) Net weight: 0.30 kg (0.66 lbs)

Function5

QR code recognition	Support scan QR code via camera
Face anti-spoofing	Support
Two-way audio	Support
Audio prompt	Support
Time synchronization	Support

Tap a section to expand it.

Download datasheet (PDF)View on hikvision.com

Specifications come from Hikvision’s published datasheet for DS-K1T344MBFWX-E1(O-STD) and may be revised by the manufacturer. Confirm the exact variant with us before ordering.
