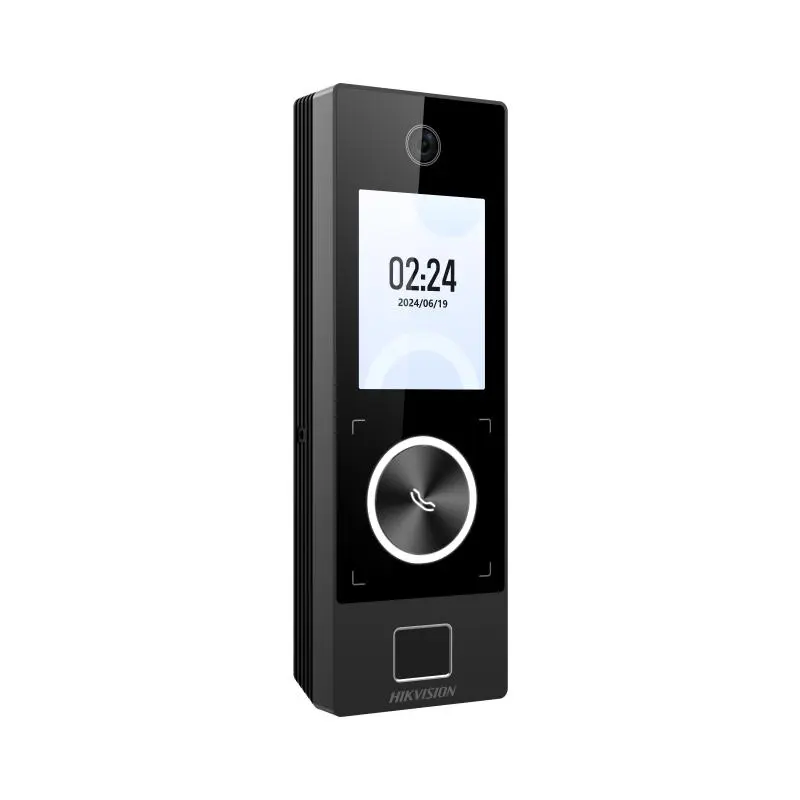

Face Access Terminal — DS-K1T323MBFWX-E1(O-STD) — view 2

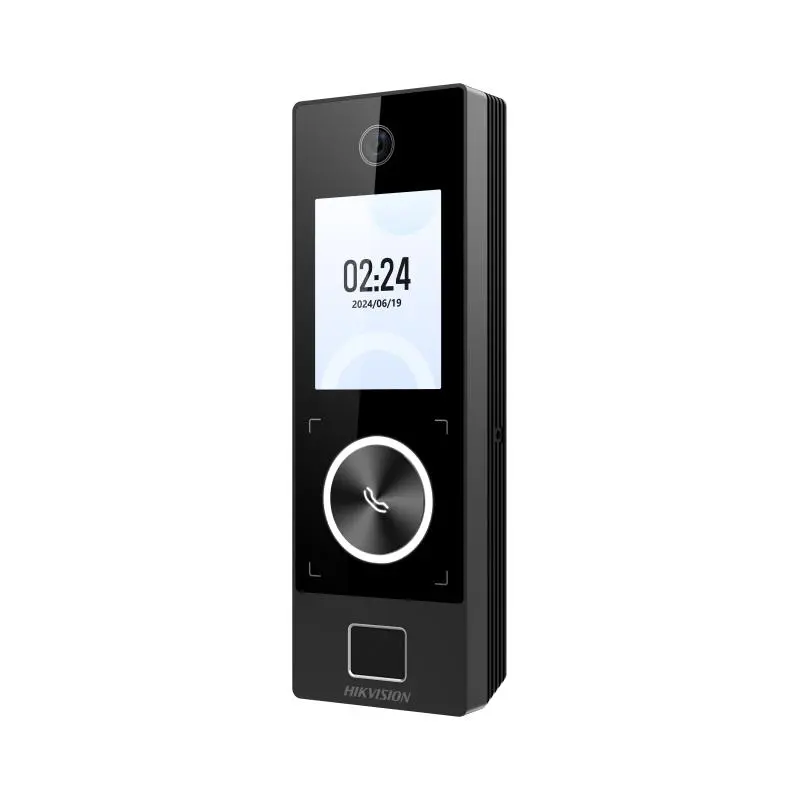

Face Access Terminal — DS-K1T323MBFWX-E1(O-STD) — view 3

Face Access Terminal — DS-K1T323MBFWX-E1(O-STD) — view 4

Access Control

Face Access Terminal

Name: Face Access Terminal
Brand: Hikvision
SKU: DS-K1T323MBFWX-E1(O-STD)
Price: 14850 KES
Availability: InStock

DS-K1T323MBFWX-E1(O-STD)

KES 14,850 per unit

✓ Genuine Hikvision stock — manufacturer warranty support

Talk to us for project and volume pricing, or for a quote that includes cabling, installation and configuration.

Enquire on WhatsApp Call 0737 454 891 Request a quote

Brand: Hikvision
Model: DS-K1T323MBFWX-E1(O-STD)
Category: Access Control
Units per carton: 20

Key features

2.4-inch display screen, 2 Mega pixel wide-angle lens
1,000 face capacity, 3000 card capacity, and 3000 fingerprint capacity
Face recognition duration < 0.2 s/User
Supports face, card, and fingerprint authentication
Two-way audio with client software, indoor station, and main station
Supports AP mode. Supports mobile Web and PC Web for configuration
Powers supply by standard PoE and at the same time powers supply for door lock (12 VDC/1 A)
Supports WDR

Specifications

System1

Operating system	Linux

Display4

Screen size	2.4-inch
Resolution	240 × 320
Type	TFT
Operation method	Non touchable

Video3

Resolution	2MP (video stream:540P)
Lens	×1
Video standard	PAL (Default) and NTSC

Network3

Bluetooth	Support
Wired network	10/100 Mbps self adaptive
Wi-Fi	Support

Interface7

PoE	IEEE802.3at, standard PoE
Network interface	1
Wiegand	1, supports Wiegand input, single direction
Lock control	1
Exit button	1
Door contact input	1
TAMPER	1

Capacity5

User capacity	1000
Card capacity	3000
Face capacity	1000
Fingerprint capacity	3000
Event capacity	150000

Authentication5

Card type	M1 card;M1 card content;CPU card No.
Card reading frequency	13.56 MHz
Face recognition duration	＜ 0.33 s
Face recognition accuracy rate	＞99%
Face recognition distance	0.3 to 1.5 m

General9

Button	1 physical call button
Power supply	12 VDC, 1 A, standard PoE
Working temperature	-30 °C to 65 °C (-22 °F to 149 °F)
Working humidity	0 % to 90 % (no condensing)

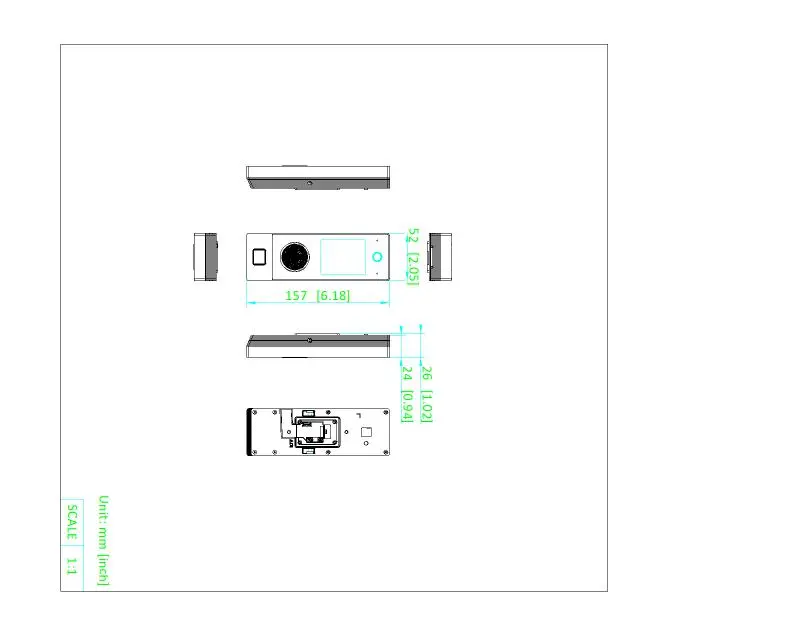

Dimensions	157 mm × 52 mm × 26 mm (6.18" × 2.05" × 1.02")
Installation	Wall mounting
Protective level	IP65
Language	English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Turkish, French, Traditional Chinese
	Net weight: 0.22 kg (0.49 lb) Rough weight: 0.61 kg (1.34 lb)

Function5

QR code recognition	Not support
Face anti-spoofing	Support
Two-way audio	Support
Audio prompt	Support
Time synchronization	Support

Tap a section to expand it.

Download datasheet (PDF)View on hikvision.com

Specifications come from Hikvision’s published datasheet for DS-K1T323MBFWX-E1(O-STD) and may be revised by the manufacturer. Confirm the exact variant with us before ordering.
