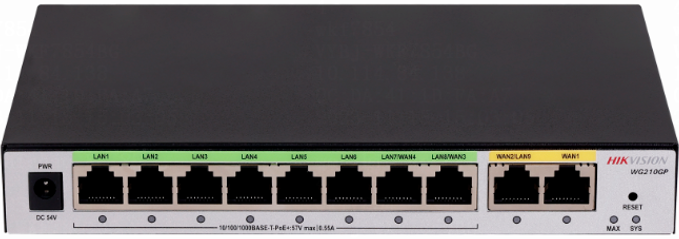

All in One 10 Port PoE AC Router — DS-3WG210GP-SI(O-STD) — view 1

All in One 10 Port PoE AC Router — DS-3WG210GP-SI(O-STD) — view 2

Data Communication

All in One 10 Port PoE AC Router

Name: All in One 10 Port PoE AC Router
Brand: Hikvision
SKU: DS-3WG210GP-SI(O-STD)
Price: 18150 KES
Availability: InStock

DS-3WG210GP-SI(O-STD)

KES 18,150 per unit

✓ Genuine Hikvision stock — manufacturer warranty support

Talk to us for project and volume pricing, or for a quote that includes cabling, installation and configuration.

Enquire on WhatsApp Call 0737 454 891 Request a quote

Brand: Hikvision
Model: DS-3WG210GP-SI(O-STD)
Category: Data Communication
Units per carton: 12

Key features

2 Gigabit WAN Ports with 1 WAN/LAN Switchable
8 Gigabit PoE LAN Ports with 2 LAN/WAN Switchable
75 W PoE Power Budget
1000 Mbps Throughput
Recommend 200 Users Access
Support Multiple VPNs Including IPsec VPN, L2TP
Support Powerful Security Features Including Firewall Policies, DDoS Defending, IP/MAC/URL Filtering, ARP Defending, etc.
Support Behavior Management
Compact Size for Flexible Deployment

Specifications

General9

Shell	Metal
	0.5 kg (1.1 lb)
Working Temperature	0 °C to 40 °C (32 °F to 104 °F)
Working Humidity	5% to 95% (no condensation)
Storage Temperature	-40 °C to 70 °C (-40 °F to 158 °F)
Storage Humidity	5% to 95% (no condensation)

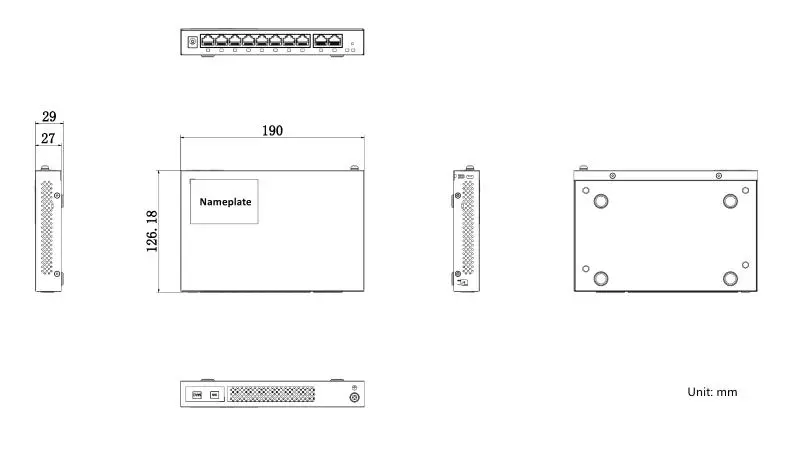

Product Dimensions (W × H × D)	190 mm × 125 mm × 27 mm (7.48'' × 4.92'' × 1.06'')
Packing List	AC Router × 1,Regulatory Compliance and Safety Information × 1,Quick Start Guide ×1,Screw Pack × 1,Power Supply Adaptor × 1,Power Cord × 1
Power Consumption	Max. 80 W

Hardware Specifications8

WAN Port	2 Gigabit WAN Ports with 1 WAN/LAN Switchable
LAN Port	8 Gigabit PoE LAN Ports with 2 LAN/WAN Switchable
PoE Port	PoE Ports: Ports 1to 8, 802.3af/at
Forwarding Capacity	20 Gbps
RAM	256 MB
Flash	128 MB
Power Supply	54 VDC, 1.48A
Reset Button	Hardware Resetting Button

WLAN Parameters8

Maximum Number of Managed APs	200
Maximum Number of Clients	200
Bandwidth	1 Gbps
Networking Access	Support fixed IP address, DHCP automatic address acquisition, PPPoE dial-up and other methods
Number of WAN Access	Up to 4 WAN Load balancing
Multi-WAN Load Balancing	Load balancing based on the destination address of the carrier,Load balancing based on link bandwidth,Load balancing based on user (IP address),Policy-based routing (PBR) for forwarding over specified lines,End-to-end link detection and backup functions
CAPWAP Tunnel	Auto AP serial number entry,AC discovery (DHCP option43, DNS),Assign basic AP network parameter through AC (Supported: Static IP, VLAN, Connected AC address)
Access Control	Open System,Shared-Key,WPA,WEP-64/128, dynamic WEP,WPA2,WPA3

Software Specifications10

Layer 2 Protocol	ARP,VLAN,ARP (gratuitous ARP)
Network Feature	IPv4,DDNS,UPnP,DHCP Server,NTP Client,Multicast,PIM,MLD Snooping,IGMP Snooping,Multicast group
VPN	IPSec VPN:,Support 100 IPSec connections,Support AH and ESP protocols (ESP supports 3DES and AES encryption algorithms),Support IKE to automatically establish SA,Support MD5 and SHA-1 authentication algorithms,Support IKE main mode and aggressive mode,Support NAT-T traversal,Support IPSec connection configuration by domain name (DDNS)
NAT	40000 Max. Access
AP Management	AP Discovery,AP Management,Support Multi-SSID Configuration,SSID Hiding,Channel Setting
User Management	User Authentication,Support user blacklist and whitelist,Controls the number of access users:,Based on APs,Based on SSIDs,Logs out users in any of the following ways:,Using RADIUS DM messages,Using commands,Support various methods to view information:,Displays the number of online users in an ESS, AP, or radio.,Collects packet statistics on air interface based on user.
Security	Firewall Policy,DDoS Defending,IP/MAC/URL Filtering,ARP Defending,Support DDoS attack prevention and statistics,Support Prevent WAN port ping,Support Prevent TCP syn scan,Support Prevent TCP Stealth FIN scan,Support Prevent TCP Xmas Tree scanning,Support Prevent TCP Null scan,Support Prevents UDP scanning,Support Prevent Land attacks,Support Protects against Smurf attacks,Support Protects against WinNuke attacks,Support Protect against Ping of Death attacks,Support Protect against SYN Flood attacks,Support Protect against UDP Flood attacks,Support Protect against ICMP Flood,Support Protect against IP Spoofing,Support Prevent Fragmented Packet Attack,Support Protect against TearDrop attack,Support Protect against Fraggle attack
System Maintenance	Support device management via web.,Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses.,Support remote management via Hik-Partner Pro.,Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected.,Support port mirroring for fault locating.
Version Upgrade	Support upgrade by Web,Support upgrade by HPP
Hik-Partner Pro	Support one-click activation and remote management via Hik-Partner Pro. Functions supported: 1. Display the port rate. 2. Display the port bandwidth utilization rate. 3. Display topology information. 4. Display the alarm status. 5. Restart ports and devices. 6. Remotely upgrade the device.

Approval4

EMC	CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
Safety	CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
Chemistry	CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
Radio	EN 301 893,EN 300 440,EN 62311,EN 301 489-3,EN 301 489-17

Tap a section to expand it.

Download datasheet (PDF)View on hikvision.com

Specifications come from Hikvision’s published datasheet for DS-3WG210GP-SI(O-STD) and may be revised by the manufacturer. Confirm the exact variant with us before ordering.
