Wi-Fi 5 1200M In-Wall Access Point — DS-3WAP521-SI(O-STD) — view 1

Wi-Fi 5 1200M In-Wall Access Point — DS-3WAP521-SI(O-STD) — view 2

Data Communication

Wi-Fi 5 1200M In-Wall Access Point

Name: Wi-Fi 5 1200M In-Wall Access Point
Brand: Hikvision
SKU: DS-3WAP521-SI(O-STD)
Price: 7700 KES
Availability: InStock

DS-3WAP521-SI(O-STD)

KES 7,700 per unit

✓ Genuine Hikvision stock — manufacturer warranty support

Talk to us for project and volume pricing, or for a quote that includes cabling, installation and configuration.

Enquire on WhatsApp Call 0737 454 891 Request a quote

Brand: Hikvision
Model: DS-3WAP521-SI(O-STD)
Category: Data Communication
Units per carton: 30

Key features

2 Gigabit LAN Ports with 1 PoE Input
802.11ac Wave 2 1167 Mbps
86 mm Wall Junction Box for Easy Installation
50+ Concurrent User Connections
Auto RF Optimization
Support Intelligent Fast Roaming

Specifications

General9

	0.25 kg (0.55 lb)
Installation Mode	In-Wall Mounting
Working Temperature	0 °C to 40 °C (32 °F to 104 °F)
Working Humidity	5% to 95% (no condensation)
Storage Temperature	-40 °C to 70 °C (-40 °F to 158 °F)
Storage Humidity	5% to 95% (no condensation)

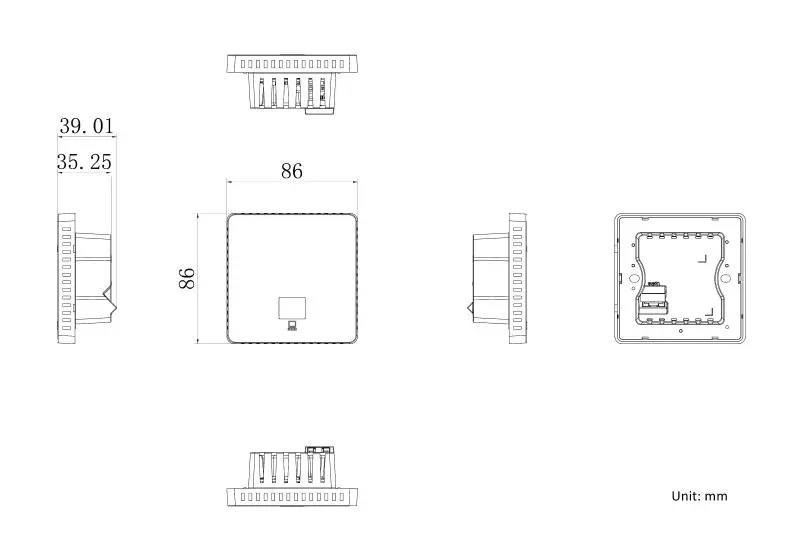

Product Dimensions (W × H × D)	86 mm × 86 mm × 35 mm (3.38'' × 3.38'' × 1.37'')
Packing List	1200 M Access Point ×1,Screw Pack × 1,Quick Start Guide ×1,Regulatory Compliance and Safety Information × 1
Power Consumption	Max. 8 W

Hardware Specifications4

Interface	1 × Gigabit RJ45 uplink port, 1 × Gigabit RJ45 port
Power Supply	IEEE 802.3af/at POE
LED Indicator	Yellow/green/blue for different working states, flashing mode
Reset Button	Hardware Resetting Button

WLAN Parameters13

Maximum Number of Clients	128
Recommended Number of Clients	50
Maximum Number of SSIDs	8
Working Frequency Band	radio 1: 5G(11a/n/ac), radio 2: 2.4G(11b/g/n)
Wi-Fi Standards	Wi-Fi 5
Wi-Fi Speed	2.4 G: 300 Mbps,5 G: 867 Mbps
Spatial Streams	2.4 GHz, 2 × 2, MU-MIMO, 5 GHz, 2 ×2, MU-MIMO
Channel Width	2.4 GHz: Auto/20 /40 MHz,5 GHz: Auto/20 /40 /80/ MHz
Number of Antennas	2.4GHz: 2; 5GHz: 2
Antenna Type	Built-in omnidirectional antennas
Antenna Gain	2.4 GHz: 3 dBi,5 GHz: 3 dBi
Transmit Power	20 dBm
Modulation Technology	OFDM: BPSK@6/9Mbp, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps; DSSS: DBPSK@1Mbps, DQPSK@2Mbps, CCK@5.5/11Mbps; MIMO-OFDM (11n): MCS 0-15; MIMO-OFDM (11ac): MCS 0-9

Software Specifications3

WLAN Security	WAP-PSK,WAP2-PSK,WPA-WAP2-PSK,Blocklist & Allowlist,Support Multiple encryption key triggered dynamic unicast/multicast key update,Support Open system/shared key authentication,Support wireless endpoint access,Support 802.11i,Support SSID and VLAN binding
Management & Maintenance	Centralized AC management
Version Upgrade	upgrade on Web

Approval4

EMC	CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
Safety	CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017),UL (UL 60950-1)
Chemistry	CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
Radio	EN 301 893,EN 300 440,EN 62311,EN 301 489-3,EN 301 489-17

Tap a section to expand it.

Download datasheet (PDF)View on hikvision.com

Specifications come from Hikvision’s published datasheet for DS-3WAP521-SI(O-STD) and may be revised by the manufacturer. Confirm the exact variant with us before ordering.
