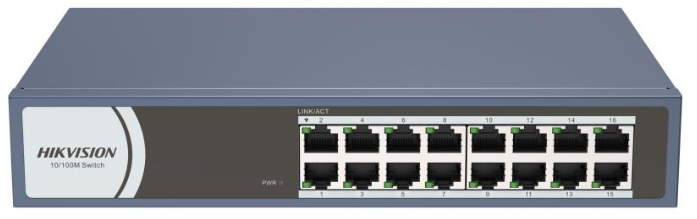

16-Port Fast Ethernet Metal Switch — DS-3E0116R-O(O-STD) — view 1

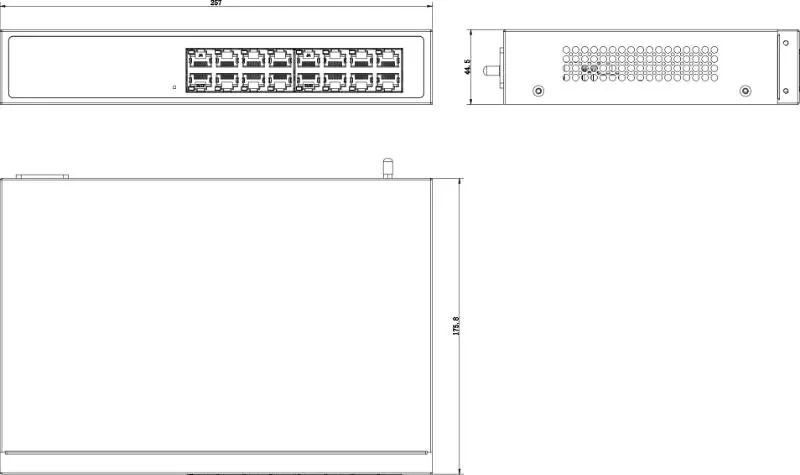

16-Port Fast Ethernet Metal Switch — DS-3E0116R-O(O-STD) — view 2

Networking

16-Port Fast Ethernet Metal Switch

Name: 16-Port Fast Ethernet Metal Switch
Brand: Hikvision
SKU: DS-3E0116R-O(O-STD)
Price: 4180 KES
Availability: InStock

DS-3E0116R-O(O-STD)

KES 4,180 per unit

✓ Genuine Hikvision stock — manufacturer warranty support

Talk to us for project and volume pricing, or for a quote that includes cabling, installation and configuration.

Enquire on WhatsApp Call 0737 454 891 Request a quote

Brand: Hikvision
Model: DS-3E0116R-O(O-STD)
Category: Networking
Units per carton: 12

Key features

16 × 10/100 Mbps RJ45 Port
Easy Plug-and-Play Installation
Desk or rack installation and wall-mounting
Rugged Metal Case

Specifications

General12

Shell	Metal material, fan-free design
Net Weight	1.1 kg (2.42 lb)
Gross Weight	1.5 kg (3.3 lb)
Dimensions (W × H × D)	257..0 mm × 44.5 mm × 175.8 mm (10.118'' × 1.751'' × 6.921'')
Operating Temperature	0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature	-40 °C to 85 °C (-40 °F to 185 °F)
Operating Humidity	5% to 95% (no condensation)
Relative Humidity	5% to 95% (no condensation)
Power Supply	220 VAC, 50/60 Hz
Max. Power Consumption	6.6 W
Power Consumption in Idle	<6.6 W
Surge Protection	6 KV

Network Parameters5

Ports	16 × 10/100 Mbps RJ45 port
MAC Address Table	8 K
Switching Capacity	3.2 Gbps
Packet Forwarding Rate	2.38 Mpps
Internal Cache	2 Mbits

Approval3

EMC	FCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020)
Safety	UL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
Chemistry	CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)

Tap a section to expand it.

Download datasheet (PDF)View on hikvision.com

Specifications come from Hikvision’s published datasheet for DS-3E0116R-O(O-STD) and may be revised by the manufacturer. Confirm the exact variant with us before ordering.
