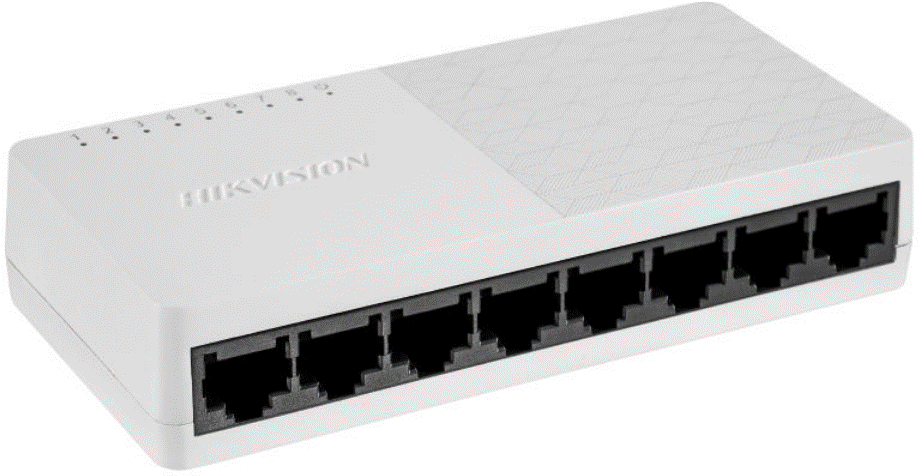

8-Port Fast Ethernet Plastic Switch — DS-3E0108D-O(O-STD) — view 1

8-Port Fast Ethernet Plastic Switch — DS-3E0108D-O(O-STD) — view 2

Networking

8-Port Fast Ethernet Plastic Switch

Name: 8-Port Fast Ethernet Plastic Switch
Brand: Hikvision
SKU: DS-3E0108D-O(O-STD)
Price: 880 KES
Availability: InStock

DS-3E0108D-O(O-STD)

KES 880 per unit

✓ Genuine Hikvision stock — manufacturer warranty support

Talk to us for project and volume pricing, or for a quote that includes cabling, installation and configuration.

Enquire on WhatsApp Call 0737 454 891 Request a quote

Brand: Hikvision
Model: DS-3E0108D-O(O-STD)
Category: Networking
Units per carton: 80

Key features

8 x 10/100 Mbps ethernet port
Supports MDI/MIDX
Store-and-forward switching
Supports MAC address auto-learning and aging
Simple, compact body design
Supports desktop and wall-mounting installation
Plug & play, easy to use

Specifications

General11

Shell	ABS
Net Weight	0.059 kg (0.13 lb)

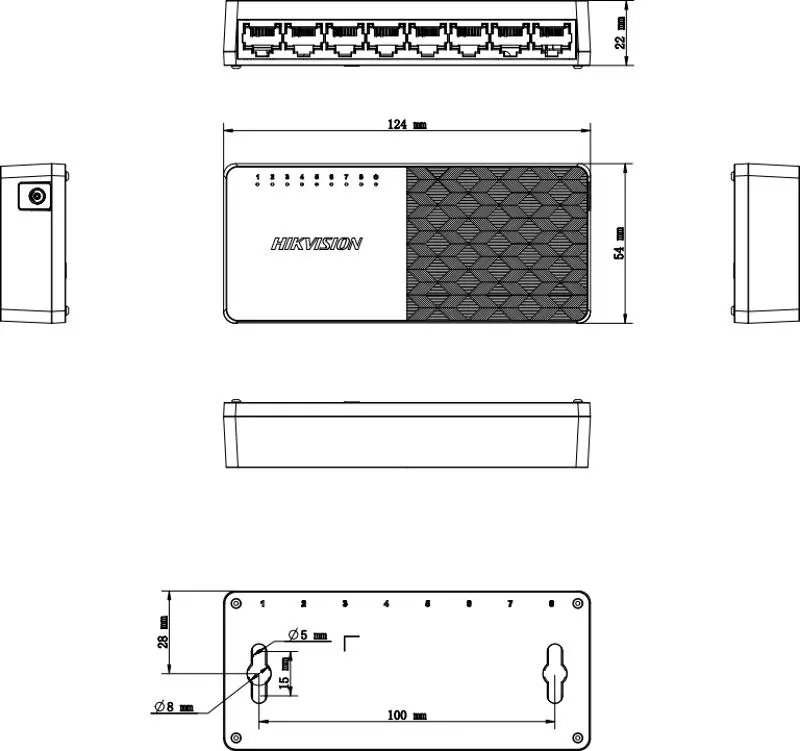

Dimensions (W × H × D)	124.00 mm × 22.00 mm × 52.00 mm (4.88'' × 0.87'' × 2.05'')
Operating Temperature	0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature	–40 °C to 85 °C (–40 °F to 185 °F)
Operating Humidity	5% to 95% (no condensation)
Relative Humidity	5% to 95% (no condensation)
Power Supply	5 VDC, 0.6 A
Installation Mode	Desk-Mounted
Max. Power Consumption	3 W
Surge Protection	2 KV

Network Parameters5

Ports	8 × 10/100 Mbps RJ45 port
MAC Address Table	2 K
Switching Capacity	1.6 Gbps
Packet Forwarding Rate	1.19 Mpps
Internal Cache	768Kbits

Approval3

EMC	CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020)
Safety	CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
Chemistry	CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)

Tap a section to expand it.

Download datasheet (PDF)View on hikvision.com

Specifications come from Hikvision’s published datasheet for DS-3E0108D-O(O-STD) and may be revised by the manufacturer. Confirm the exact variant with us before ordering.
