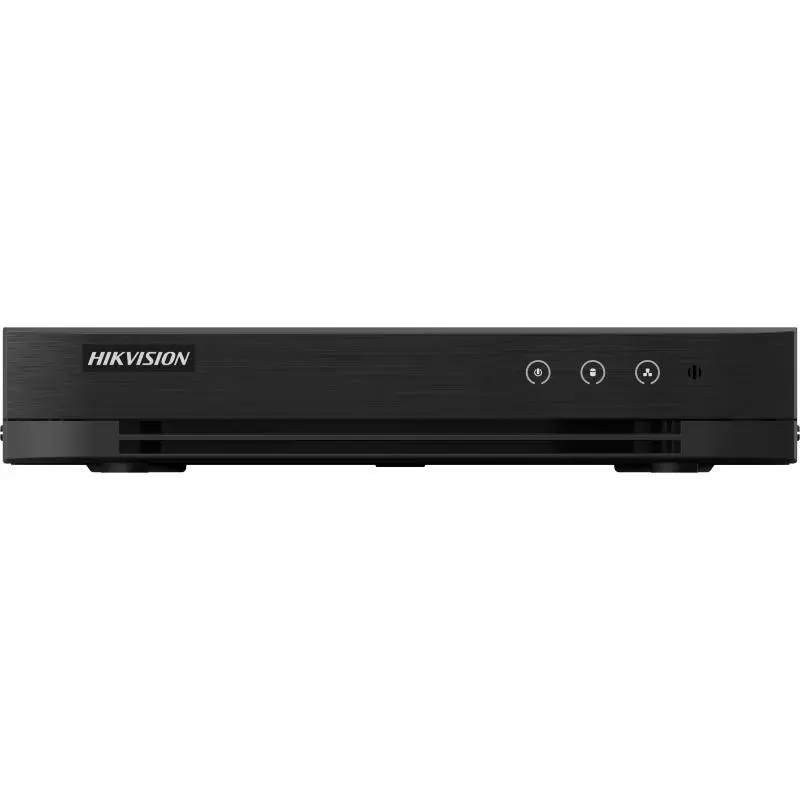

1080P Turbo HD 8.0 16CH DVR-Metallic — DS-7216HGHI-M1/T(STD) — view 2

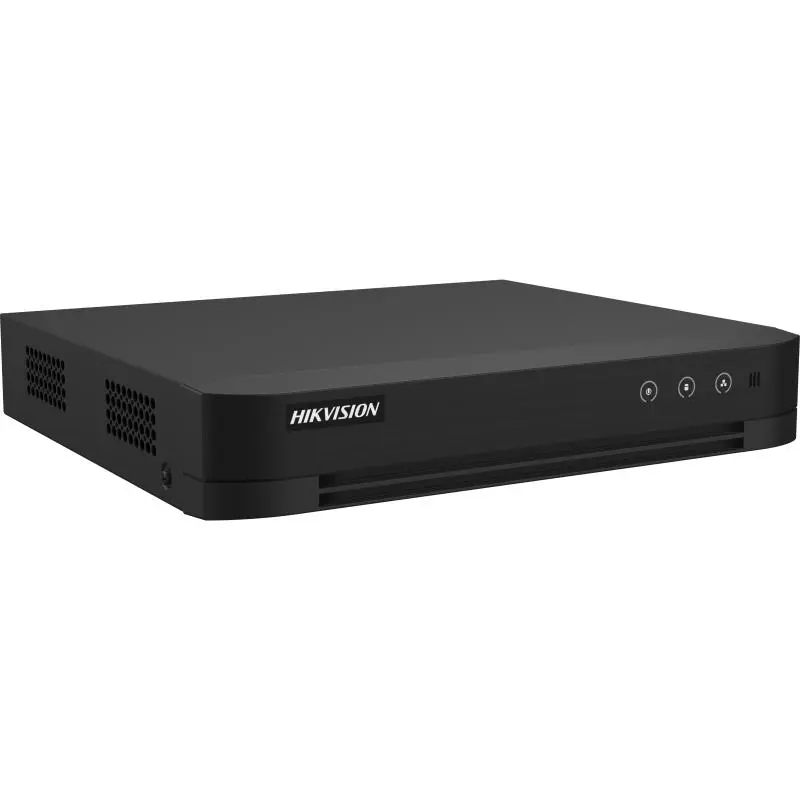

1080P Turbo HD 8.0 16CH DVR-Metallic — DS-7216HGHI-M1/T(STD) — view 3

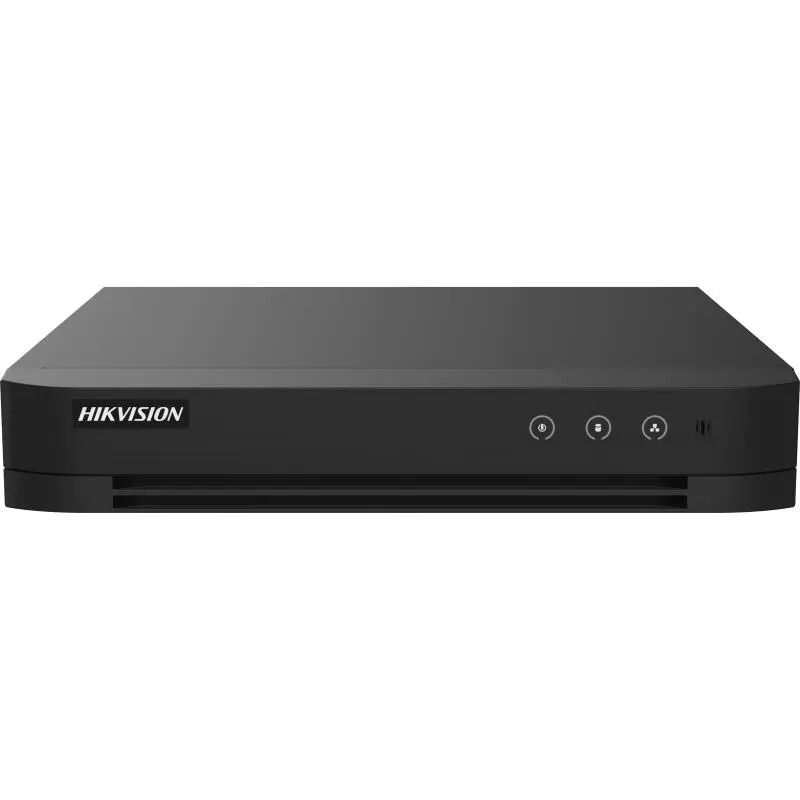

1080P Turbo HD 8.0 16CH DVR-Metallic — DS-7216HGHI-M1/T(STD) — view 4

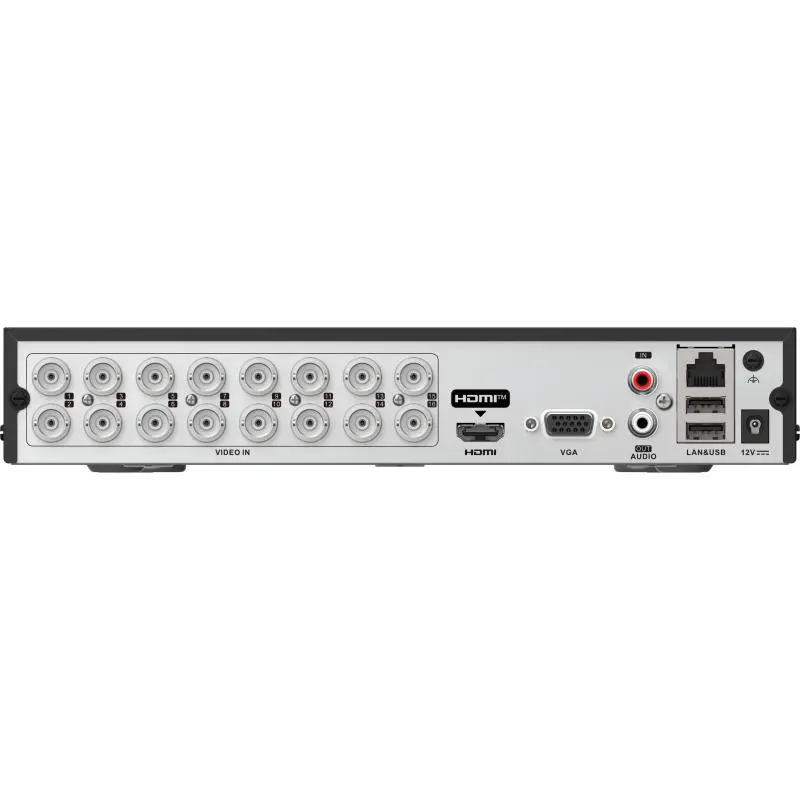

1080P Turbo HD 8.0 16CH DVR-Metallic — DS-7216HGHI-M1/T(STD) — view 5

1080P Turbo HD 8.0 16CH DVR-Metallic — DS-7216HGHI-M1/T(STD) — view 6

CCTV-Turbo HD

1080P Turbo HD 8.0 16CH DVR-Metallic

Name: 1080P Turbo HD 8.0 16CH DVR-Metallic
Brand: Hikvision
SKU: DS-7216HGHI-M1/T(STD)
Price: 12980 KES
Availability: InStock

DS-7216HGHI-M1/T(STD)

KES 12,980 per unit

✓ Genuine Hikvision stock — manufacturer warranty support

Talk to us for project and volume pricing, or for a quote that includes cabling, installation and configuration.

Enquire on WhatsApp Call 0737 454 891 Request a quote

Brand: Hikvision
Model: DS-7216HGHI-M1/T(STD)
Category: CCTV-Turbo HD
Units per carton: 8

Key features

Deep learning based human and vehicle targets classification of Motion Detection 2.0
H.265 Pro+/H.265 Pro/H.265 video compression
HDTVI/AHD/CVI/CVBS/IP video input
Audio via coaxial cable
Up to 18-ch IP camera inputs (up to 5 MP)
Up to 1080p Lite@15 fps encoding capability
Support all channels HDTVI two-way audio technology

Specifications

Video and Audio12

IP Video Input	2-ch (up to 18-ch) Up to 5 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras
Analog Video Input	16-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI Input	1080p25, 1080p30, 720p25, 720p30
AHD Input	1080p25, 1080p30, 720p25, 720p30
HDCVI Input	1080p25, 1080p30, 720p25, 720p30
CVBS Input	PAL/NTSC
HDMI Output	1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA Output	1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Audio Input	1-ch, RCA (2.0 Vp-p, 1 KΩ)
Audio Output	1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio	1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Synchronous Playback	16-ch

Recording8

Video Compression	H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution	1080p lite/720p/VGA/WD1/4CIF/CIF
Frame Rate	Main stream: For 1080p stream access: 1080p lite/720p lite/WD1/4CIF/VGA@15fps; CIF@25fps (P)/30fps (N) For 720p stream access: 720p/WD1/4CIF/VGA@15fps; CIF@25fps (P)/30fps (N) For standard definition stream access: WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) Sub-stream: For 1080p and 720p stream access: CIF/QVGA@15fps For standard definition stream access: CIF/QVGA@25fps (P)/30fps (N)
Video Bitrate	32 Kbps to 4 Mbps
Dual-stream	Support
Stream Type	Video, Video & Audio
Audio Compression	G.711u
Audio Bitrate	64 Kbps

Network3

Remote Connection	128
Network Protocol	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, UPnP™, HTTPS, ONVIF
Network Interface	1, RJ45 10M/100M self-adaptive Ethernet interface

Auxiliary Interface3

SATA	1, SATA interface
Capacity	Up to 6 TB capacity for each disk
USB Interface	Rear panel: 2 × USB 2.0

General6

Power Supply	12 VDC, 2 A
Consumption	≤ 18 W
Working Temperature	-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity	10% to 90%

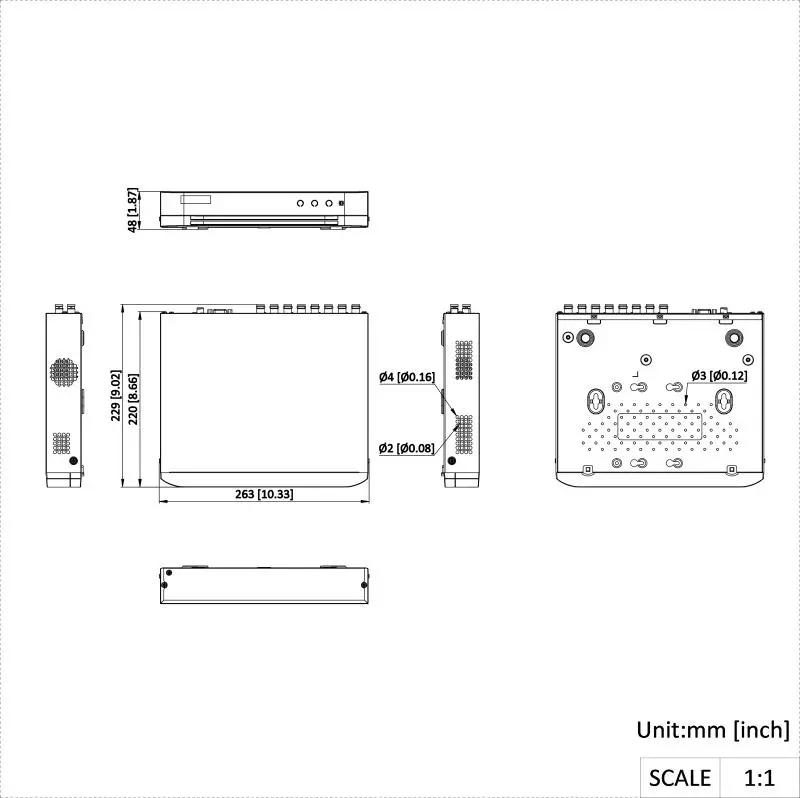

Dimension (W × D × H)	263 × 220 × 48 mm (10.3 × 8.7 × 1.9 inch)
	≤ 2.2 kg (4.9 lb)

Tap a section to expand it.

Download datasheet (PDF)View on hikvision.com

Specifications come from Hikvision’s published datasheet for DS-7216HGHI-M1/T(STD) and may be revised by the manufacturer. Confirm the exact variant with us before ordering.
