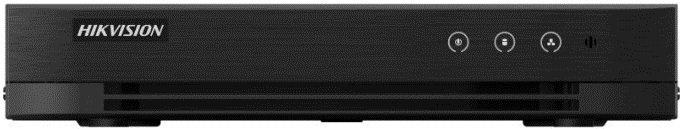

1080P Turbo HD 8.0 4CH DVR-Metallic — DS-7204HGHI-M1/T(STD) — view 1

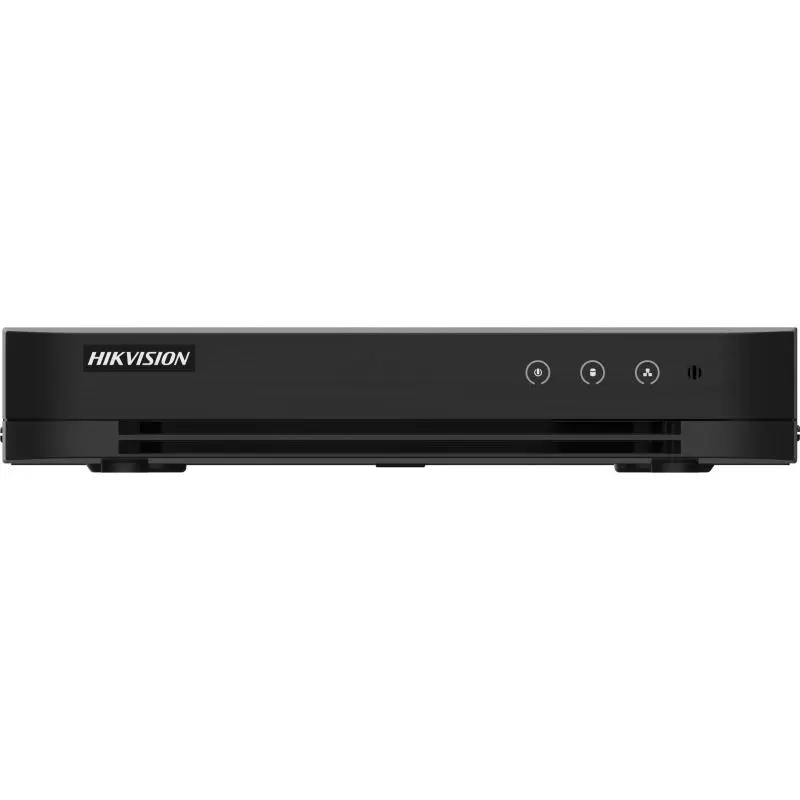

1080P Turbo HD 8.0 4CH DVR-Metallic — DS-7204HGHI-M1/T(STD) — view 2

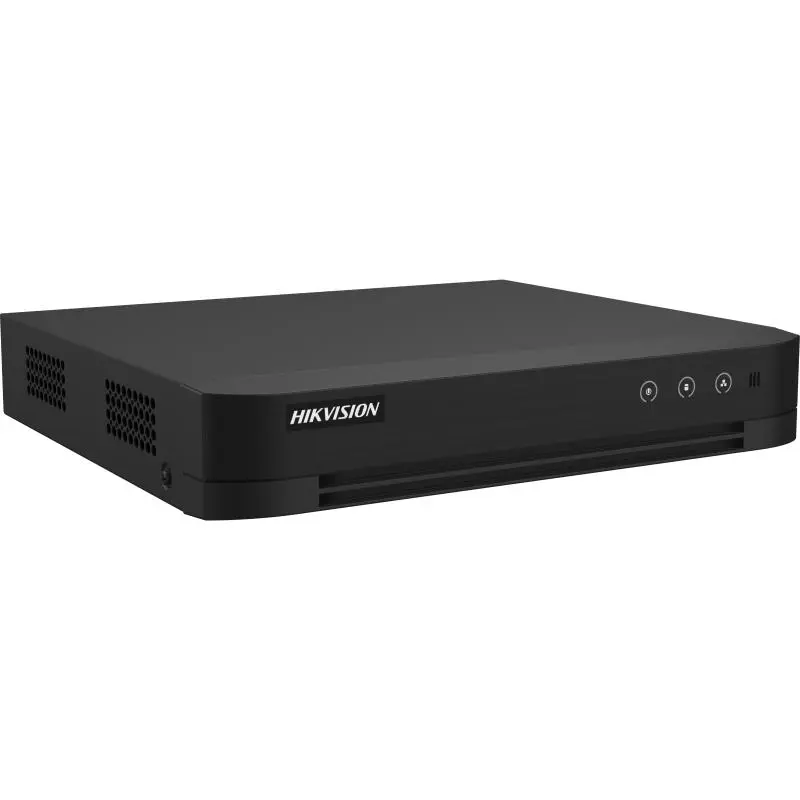

1080P Turbo HD 8.0 4CH DVR-Metallic — DS-7204HGHI-M1/T(STD) — view 3

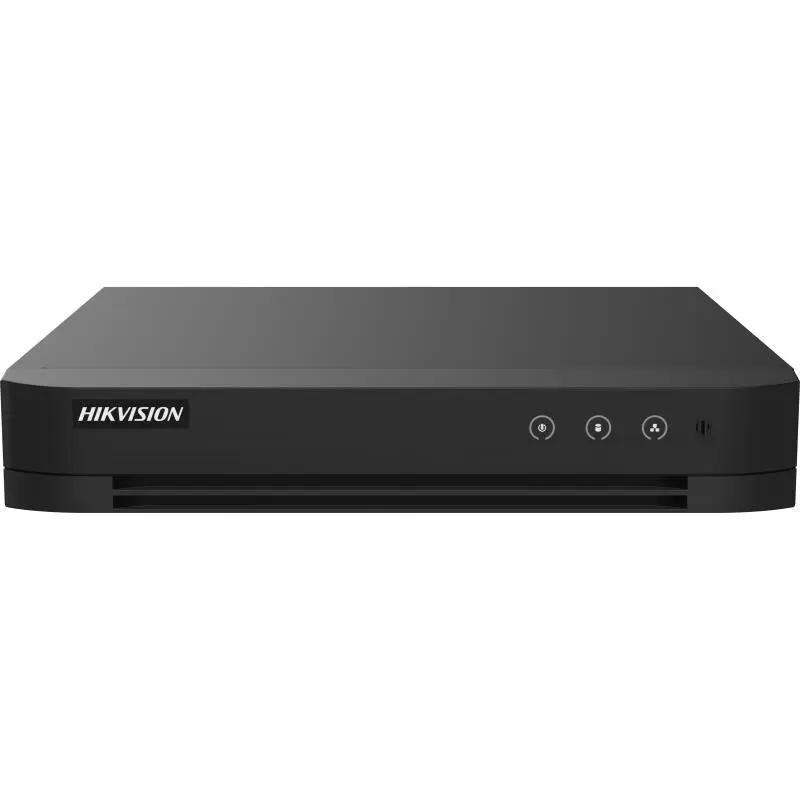

1080P Turbo HD 8.0 4CH DVR-Metallic — DS-7204HGHI-M1/T(STD) — view 4

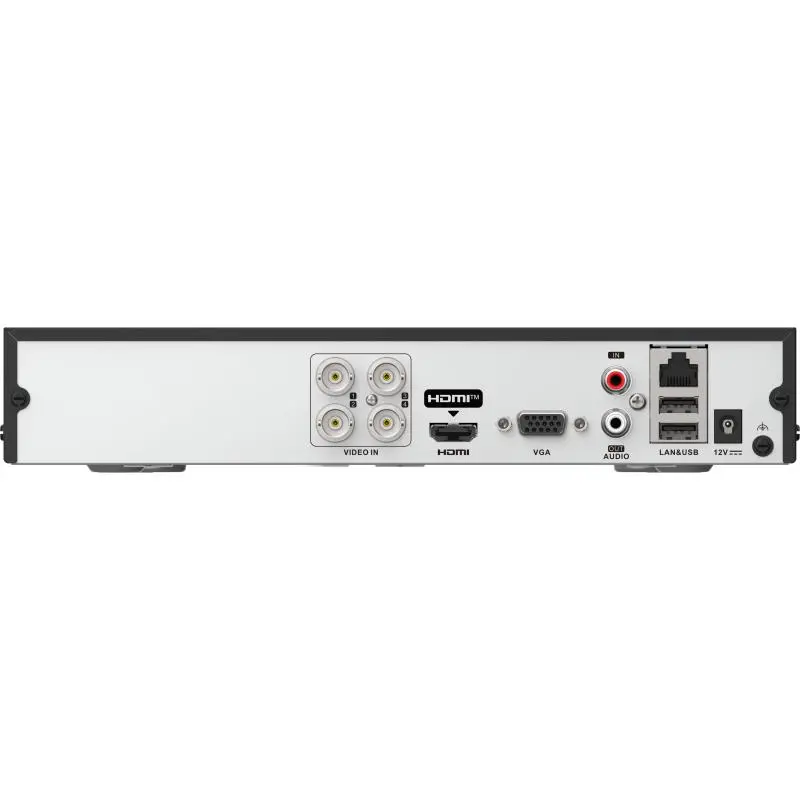

1080P Turbo HD 8.0 4CH DVR-Metallic — DS-7204HGHI-M1/T(STD) — view 5

1080P Turbo HD 8.0 4CH DVR-Metallic — DS-7204HGHI-M1/T(STD) — view 6

CCTV-Turbo HD

1080P Turbo HD 8.0 4CH DVR-Metallic

Name: 1080P Turbo HD 8.0 4CH DVR-Metallic
Brand: Hikvision
SKU: DS-7204HGHI-M1/T(STD)
Price: 6435 KES
Availability: InStock

DS-7204HGHI-M1/T(STD)

KES 6,435 per unit

✓ Genuine Hikvision stock — manufacturer warranty support

Talk to us for project and volume pricing, or for a quote that includes cabling, installation and configuration.

Enquire on WhatsApp Call 0737 454 891 Request a quote

Brand: Hikvision
Model: DS-7204HGHI-M1/T(STD)
Category: CCTV-Turbo HD
Units per carton: 8

Key features

Support all channels motion detection technology
H.265 Pro+/H.265 Pro/H.265 video compression
HDTVI/CVI/AHD/IP/CVBS video inputs
Audio over coaxial cable
Support all channels HDTVI two-way audio technology
Up to 5-ch IP camera inputs

Specifications

Motion Detection 2.01

Human/Vehicle Analysis	Deep learning based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported;

Video and Audio13

IP Video Input	1-ch (up to 5-ch) Up to 2MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras
Analog Video Input	4-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDMI Output	1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
VGA Output	1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
CVBS Input	Support
HDTVI Input	1080p25, 1080p30, 720p25, 720p30
Synchronous playback	4-ch
AHD Input	1080p25, 1080p30, 720p25, 720p30
HDCVI Input	1080p25, 1080p30, 720p25, 720p30
Video Output Mode	HDMI/VGA simultaneous output
Audio Output	1-ch, RCA (Linear, 1 KΩ)
Audio Input	1-ch RCA (2.0 Vp-p, 1 KΩ) 4-ch via coaxial cable
Two-Way Audio	Reuse the first audio input

Recording7

Video Compression	H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution	For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF For 720p stream access: 720p/WD1/4CIF/VGA/CIF For SD stream access: WD1/4CIF/VGA/CIF
Frame Rate	Main stream: For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@25 fps(P)/30 fps (N) For 720p stream access: 720p/WD1/4CIF/VGA/CIF@ 25fps (P)/30 fps (N) For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) Sub-stream: 4CIF@15fps; CIF/QVGA@25 fps (P)/30 fps (N)
Video Bitrate	32 Kbps to 4 Mbps
Stream Type	Video, Video & Audio
Audio Compression	G.711u
Audio Bitrate	64 Kbps

Network4

Total Bandwidth	64 Mbps
Network Protocol	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP™, HTTPS
Remote Connection	32
Network Interface	1, RJ45 10/100 Mbps self-adaptive Ethernet interface

Auxiliary Interface4

SATA	1 SATA interface
Capacity	Up to 4 TB capacity for each disk
USB Interface	Rear panel: 2 × USB 2.0
Alarm In/Out	N/A

General6

Power Supply	12 VDC, 1.5 A
Consumption	≤ 10 W (without HDD)
Working Temperature	-10 °C to 55 °C (14 °F to +131 °F)
Working Humidity	10% to 90%

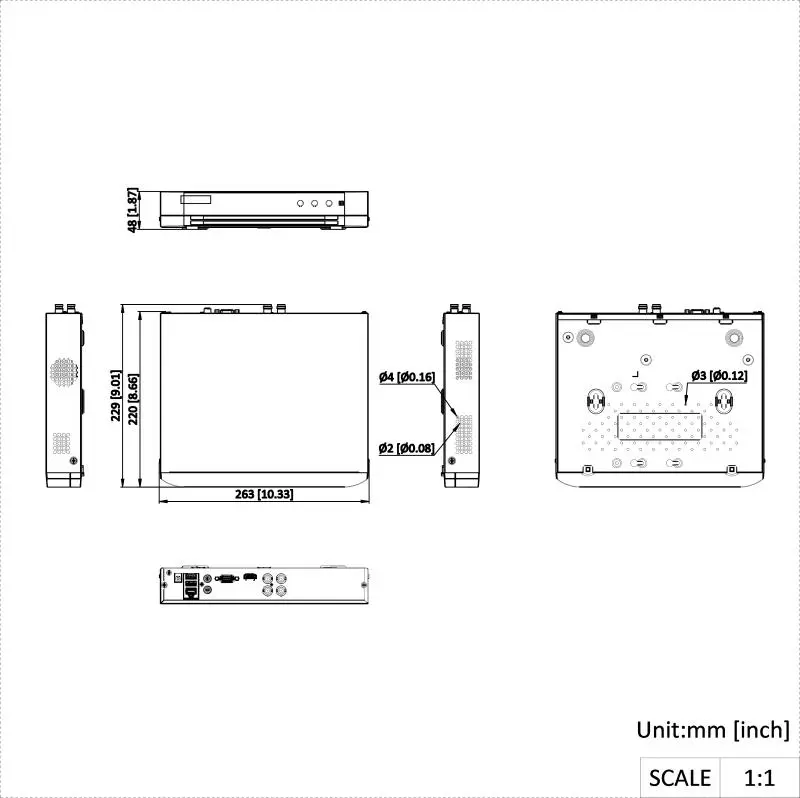

Dimension (W × D × H)	263 × 220 × 48 mm (10.3 × 8.7 × 1.9 inch)
	≤ 0.8 kg (without HDD, 1.8 lb.)

Tap a section to expand it.

Download datasheet (PDF)View on hikvision.com

Specifications come from Hikvision’s published datasheet for DS-7204HGHI-M1/T(STD) and may be revised by the manufacturer. Confirm the exact variant with us before ordering.
