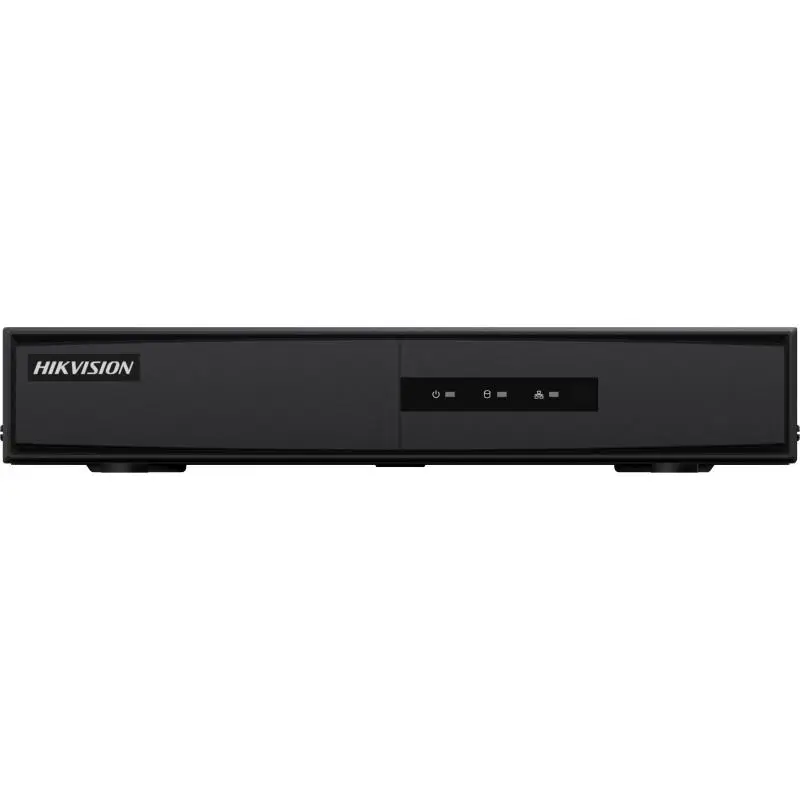

4CH 4 PORT POE 1 HDD Q Series NVR — DS-7104NI-Q1/4P/M(STD)(D) — view 2

4CH 4 PORT POE 1 HDD Q Series NVR — DS-7104NI-Q1/4P/M(STD)(D) — view 3

CCTV-IP

4CH 4 PORT POE 1 HDD Q Series NVR

Name: 4CH 4 PORT POE 1 HDD Q Series NVR
Brand: Hikvision
SKU: DS-7104NI-Q1/4P/M(STD)(D)
Price: 10010 KES
Availability: InStock

DS-7104NI-Q1/4P/M(STD)(D)

KES 10,010 per unit

✓ Genuine Hikvision stock — manufacturer warranty support

Talk to us for project and volume pricing, or for a quote that includes cabling, installation and configuration.

Enquire on WhatsApp Call 0737 454 891 Request a quote

Brand: Hikvision
Model: DS-7104NI-Q1/4P/M(STD)(D)
Category: CCTV-IP
Units per carton: 8

Key features

H.265+/H.265/H.264+/H.264 video compression
Up to 40 Mbps incoming bandwidth, and 60 Mbps outgoing bandwidth
Up to 4-ch network camera inputs
Up to 4-ch 1080p decoding capability
HDMI and VGA simultaneous output

Specifications

Video and Audio6

IP Video Input	4-ch Up to 6 MP resolution
Incoming Bandwidth	40 Mbps
Outgoing Bandwidth	60 Mbps
HDMI Output	1-ch, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
VGA Output	1-ch, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
Video Output Mode	HDMI/VGA simultaneous output

Decoding5

Decoding Format	H.265+/H.265/ H.264+/H.264
Recording Resolution	6 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
Synchronous playback	4-ch
Decoding Capability	4-ch@1080p (30 fps) or 2-ch@4 MP (30 fps) or 1-ch@6 MP (30 fps)
Stream Type	Video, Video & Audio

Network3

Remote Connection	16
Network Protocol	TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP,UPnP™
Network Interface	1, RJ-45 10/100Mbps self-adaptive Ethernet interface

PoE3

Interface	4, RJ-45 10/100 Mbps self-adaptive Ethernet interface
Power	≤ 36 W
Standard	IEEE 802.3 af/at

Auxiliary Interface4

SATA	1 SATA interface
Capacity	Up to 6TB capacity for each disk
Alarm In/Out	N/A
USB Interface	Rear panel: 2 × USB 2.0

General6

Power Supply	48 VDC, 1 A
Consumption	≤ 10 W
Working Temperature	-10 to +55º C (+14 to +131º F)
Working Humidity	10% to 90%

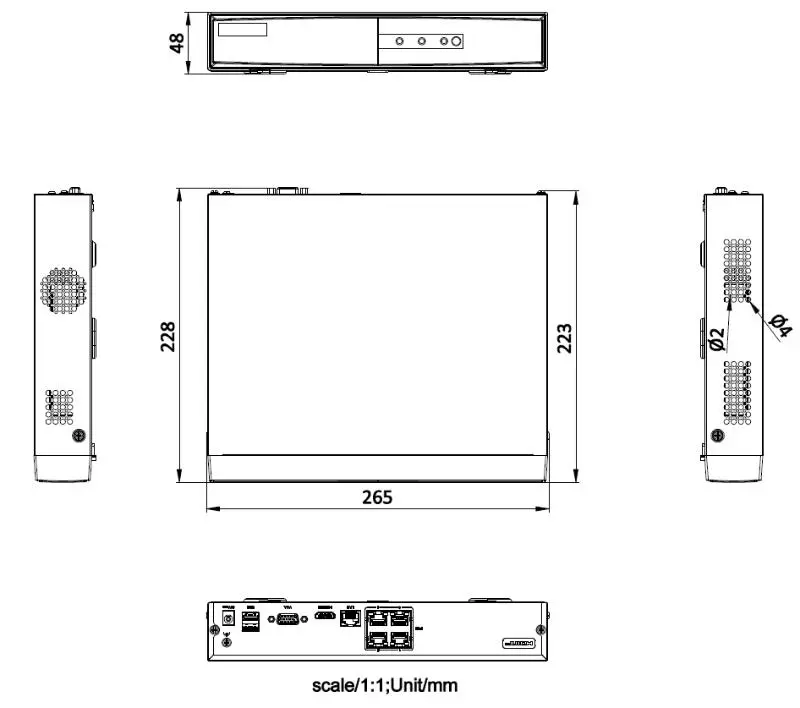

Dimension (W × D × H)	265 × 223 × 48 mm (10.4" × 8.8" × 1.9")
	≤ 1 kg (2.2 lb)

Certification1

CE	EN50130-4, EN 61000-3-2,EN 61000-3-3

Tap a section to expand it.

Download datasheet (PDF)View on hikvision.com

Specifications come from Hikvision’s published datasheet for DS-7104NI-Q1/4P/M(STD)(D) and may be revised by the manufacturer. Confirm the exact variant with us before ordering.
