5Ghz 867Mbps 3KM Wireless Bridge Kit

Name: 5Ghz 867Mbps 3KM Wireless Bridge Kit
Brand: Hikvision
SKU: DS-3WF3000-EI-5AC/P(O-STD)
Price: 11880 KES
Availability: InStock

DS-3WF3000-EI-5AC/P(O-STD)

KES 11,880 per unit

✓ Genuine Hikvision stock — manufacturer warranty support

Talk to us for project and volume pricing, or for a quote that includes cabling, installation and configuration.

Enquire on WhatsApp Call 0737 454 891 Request a quote

Brand: Hikvision
Model: DS-3WF3000-EI-5AC/P(O-STD)
Category: Networking
Units per carton: 5

Key features

Up to 3 km wireless transmission distance
867 Mbps 802.11ac wireless bridge
Built-in 8 dBi 2 x 2 MIMO antenna
Visualized topology management
Standard PoE Input & Output
Plug and Play

Specifications

General13

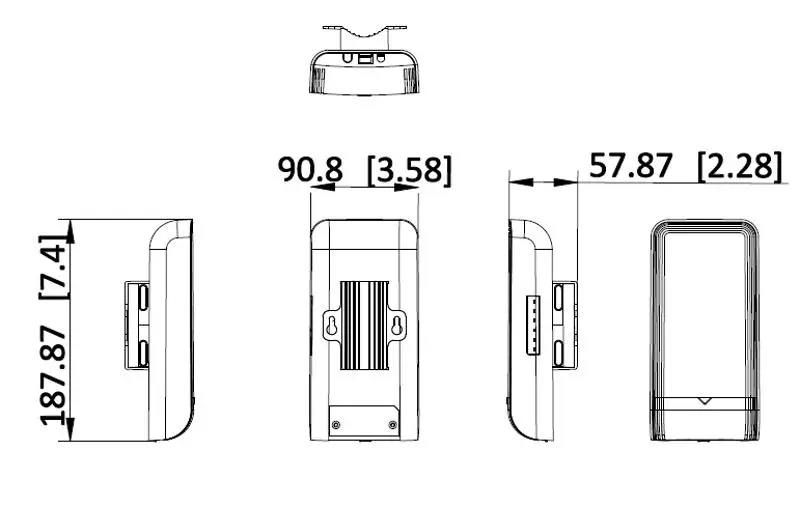

Product Dimensions (W × H × D)	90.8 mm × 187.87 mm × 57.87 mm (3.58'' × 7.4'' × 2.28'')
Package Dimensions (W × H × D)	256 mm × 231 mm × 86 mm (10.07" × 9.09" × 3.38")
Net Weight	0.26 kg (0.57 lb) per device
Gross Weight	1.1 kg (2.43 lb)
Packing List	Wireless Bridge × 2,PoE Power Supply × 2,AC Cord × 2,Quick Start Guide ×1,Regulatory Compliance and Safety Information × 1,Binding Tape × 4
Packing Method	Packing in pairs
Working Temperature	-30 °C to 65 °C (-22 °F to 149 °F)
Working Humidity	5% to 95% (no condensation)
Storage Temperature	-40 °C to 80 °C (-40 °F to 176 °F)
Storage Humidity	5% to 95% (no condensation)
Installation Mode	Pole Mounting
Ingress Protection	IP55
Power Consumption	2.43 W for typical (1-ch 2MP IPC), Max. 3.6 W

Wireless Parameter8

Max. Transmission Rate of Air Interface	≤ 867 Mbps
Wireless Standard	IEEE 802.11/a/n/ac
Working Frequency Band	5150 MHz ~ 5250 MHz,5250 MHz~ 5350 MHz,5470 MHz~ 5725 MHz,5725 MHz~ 5825 MHz
Antenna Gain	8 dBi
Antenna Angle	(H) Beamwidth [3 dB] 50°, (V) Beamwidth [3 dB] 50°
Transmitting Power	22 dBm @11ac 80MHz MCS0 (Note: Transmitting power may vary with local regulations.)
Receiving Sensitivity	-84 ±2dBm@AC80-MCS0
Throughput Rate	PTP: 90 Mbps/0.5 KM(AC80),90 Mbps/1 KM(AC80),40 Mbps/3 KM(AC80),PTMP(1 to 4): 20 Mbps/3 KM(AC80)

Hardware Parameter4

Network Interface	2 × 10/100 Mbps RJ45 ports
LED Indicator	Power indicator,LAN indicator,Signal intensity indicator
Reset	Hardware resetting button
Power Supply	48V PoE/12~24V DC;Check the physical interface image below for more details.

Software Function10

Application Function	IFM,IPM,DFS,TPC
Channel Width	20/40/80 MHz
Channel Selection	Auto/manual selection
Security Mode	WPA2-PSK
Security Mechanism	Wireless network name hidden
Network Protocol	NTP (network time synchronization),SADP (auto search for IP address), HTTPS/HTTP (web management),SSH (debugging)
Management Method	HCP,Web,iVMS-4200,HPP
System Log	Syslog,Control center information
Upgrade	Web,iVMS-4200,HCP,HPP
HPP	Support one-click activation and remote management via Hik-Partner Pro. Functions supported: 1. Reboot device 2. Restore device 3. Display the topology information 4. Display the connection status between AP and CPEs, including signal intensity, background noise, sending & receiving rate 5. Configure wireless settings, including working mode, SSID, password, channel, channel bandwidth, transmitting power 6. Bridge alignment 7. Spectrum scanning 8. PoE output management

PoE Power Supply3

PoE Port	AP: LAN1 802.3af/at PoE IN; CPE: LAN1 passive PoE IN, LAN2 802.3 af PoE OUT
PoE Power Budget	10 W
PoE Distance	100 m

Approval4

EMC	CE-EMC(EN 55032, EN 55035, EN 61000-3-2, EN IEC 61000-3-2, EN 61000-3-3, EN 50130-4), IC(ICES-003, Issue 7),RCM(AS/NZS CISPR 32)
Safety	CB (IEC 62368-1),CE-LVD (EN 62368-1)
Chemistry	CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
Radio	EN 301 893,EN 300 440,EN 62311,EN 301 489-3,EN 301 489-17,EN 301 489-1,EN 55032, EN 55035, EN 61000-3-2, EN IEC 61000-3-2, EN 61000-3-3, EN 50130-4, EN 50385, EN IEC 62311, EN 62368-1

Tap a section to expand it.

Download datasheet (PDF)View on hikvision.com

Specifications come from Hikvision’s published datasheet for DS-3WF3000-EI-5AC/P(O-STD) and may be revised by the manufacturer. Confirm the exact variant with us before ordering.
