Networking

24 Port Gigabit Unmanaged POE Switch

Name: 24 Port Gigabit Unmanaged POE Switch
Brand: Hikvision
SKU: DS-3E0526P-E(O-STD)(B)
Price: 29150 KES
Availability: InStock

DS-3E0526P-E(O-STD)(B)

KES 29,150 per unit

✓ Genuine Hikvision stock — manufacturer warranty support

Talk to us for project and volume pricing, or for a quote that includes cabling, installation and configuration.

Enquire on WhatsApp Call 0737 454 891 Request a quote

Brand: Hikvision
Model: DS-3E0526P-E(O-STD)(B)
Category: Networking
Units per carton: 4

Key features

Layer 2 network switch designed for video data transmission
24 x 10/100/1000 Mbps ethernet port, 1 x 10/100/1000 Mbps uplink ethernet port and 1 x 10/100/1000 Mbps uplink SFP port
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z network standards available
IEEE 802.3 af & at high PoE power supply
Store-and-forward switching
Safe and reliable using 6 KV high surge protection
Plug and play ensures simplicity and convenience.

Specifications

General13

Shell	Metal material
Net Weight	2.88 kg (6.35 lb)
Gross Weight	3.74 kg (8.25 lb)

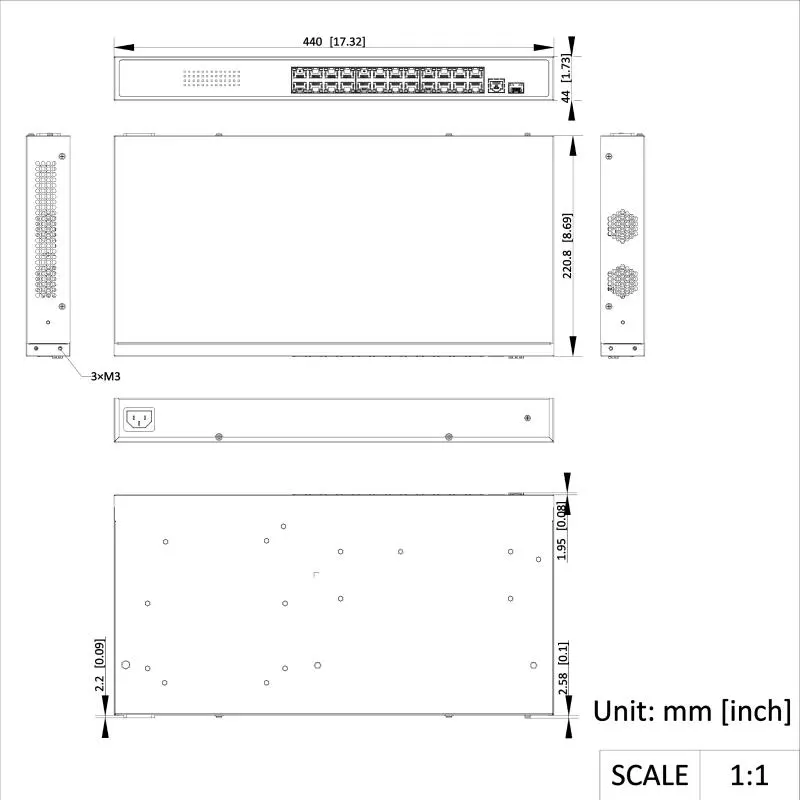

Dimensions (W × H × D)	440.0 mm × 44.0 mm × 220.8 mm (17.3'' × 1.7'' × 8.7'')
Operating Temperature	–10 °C to 55 °C (14 °F to 131 °F)
Storage Temperature	–40 °C to 85 °C (–40 °F to 185 °F)
Operating Humidity	5% to 95% (no condensation)
Relative Humidity	5% to 95% (no condensation)
Power Supply	100~240 VAC, 50/60 Hz, Max. 6.5 A
Max. Power Consumption	400 W
Power Consumption in Idle	30 W
Installation Mode	Desk-Mounted,Rack (equipped with mounting ears);
Surge Protection	6 KV

Network Parameters5

Ports	24 × Gigabit PoE port;1 × Gigabit RJ45 port;1 × Gigabit fiber optical port
MAC Address Table	8 K
Switching Capacity	52 Gbps
Packet Forwarding Rate	38.69 Mpps
Internal Cache	4.1 Mbits

PoE Power Supply5

PoE Standard	IEEE 802.3af,IEEE 802.3at
PoE Power Pin	End-span: 1/2(+), 3/6(-)
PoE Port	PoE: Ports 1 to 24
Max. Port Power	30 W
PoE Power Budget	370 W

Approval3

EMC	CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
Safety	UL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
Chemistry	CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)

Tap a section to expand it.

Download datasheet (PDF)View on hikvision.com

Specifications come from Hikvision’s published datasheet for DS-3E0526P-E(O-STD)(B) and may be revised by the manufacturer. Confirm the exact variant with us before ordering.
