| Shell | Metal material, fan-free design |
|---|---|
| Net Weight | 0.9 kg (2.0 lb) |
| Gross Weight | 1.4 kg (3.1 lb) |

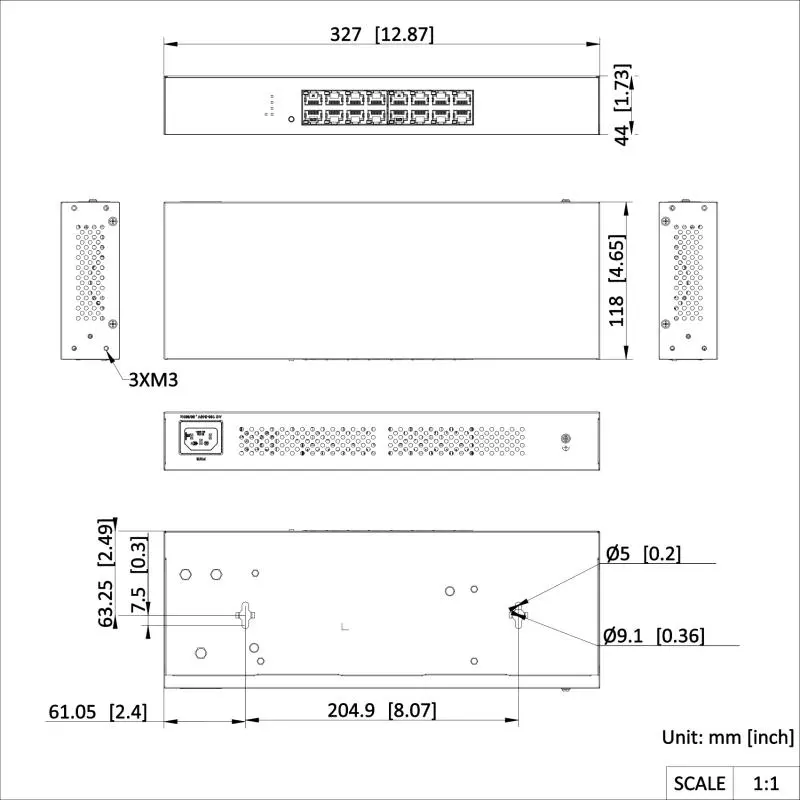

| Dimensions (W × H × D) | 327.00 mm × 44.00 mm × 118.00 mm (12.87'' × 1.73'' × 4.65'') |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Storage Temperature | -40 °C to 85 °C (-40 °F to 185 °F) |
| Operating Humidity | 5% to 95% (no condensation) |
| Relative Humidity | 5% to 95% (no condensation) |
| Power Supply | 100-240 VAC, 50/60 Hz, Max. 0.3 A |
| Max. Power Consumption | 12 W |
| Power Consumption in Idle | 2.8 W |
| Installation Mode | Rack (equipped with mounting ears) |
| Surge Protection | 6 KV |
| Ports | 16 × Gigabit RJ45 port |
|---|---|
| MAC Address Table | 8 K |
| Switching Capacity | 32 Gbps |
| Packet Forwarding Rate | 23.81 Mpps |
| Internal Cache | 4.1 Mbits |
| EMC | CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),RCM (AS/NZS CISPR 32: 2015) |
|---|---|
| Safety | CE-LVD (EN 62368-1: 2014+A11: 2017),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition) |
| Chemistry | CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006) |
Tap a section to expand it.
Specifications come from Hikvision’s published datasheet for DS-3E0516R-O and may be revised by the manufacturer. Confirm the exact variant with us before ordering.
