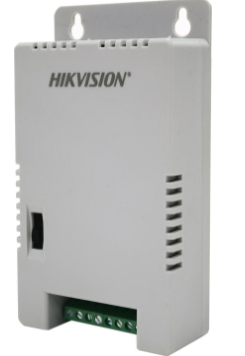

Power Supply — DS-2FA1225-C4(UK)(O-STD) — view 1

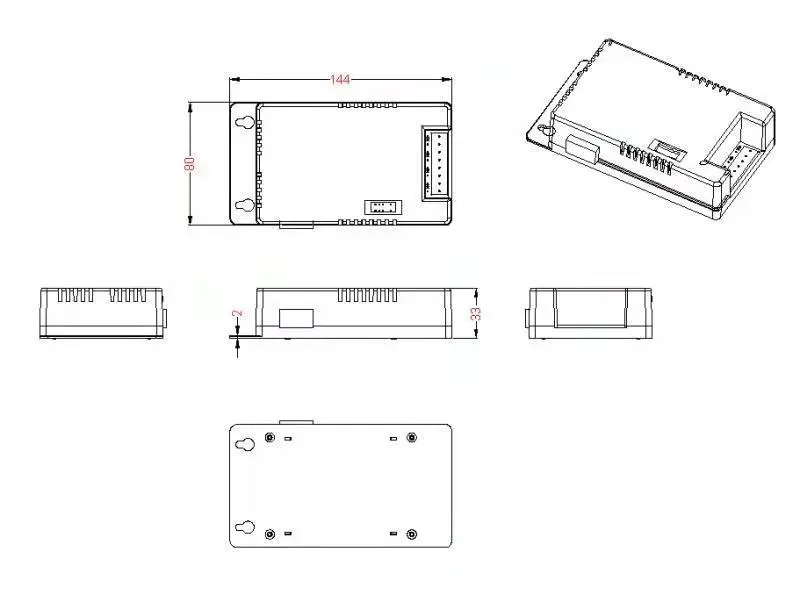

Power Supply — DS-2FA1225-C4(UK)(O-STD) — view 2

Accessories

Power Supply

Name: Power Supply
Brand: Hikvision
SKU: DS-2FA1225-C4(UK)(O-STD)
Price: 1210 KES
Availability: InStock

DS-2FA1225-C4(UK)(O-STD)

KES 1,210 per unit

✓ Genuine Hikvision stock — manufacturer warranty support

Talk to us for project and volume pricing, or for a quote that includes cabling, installation and configuration.

Enquire on WhatsApp Call 0737 454 891 Request a quote

Brand: Hikvision
Model: DS-2FA1225-C4(UK)(O-STD)
Category: Accessories
Units per carton: 40

Key features

48 W, 12 VDC/1 A per channel
Over current/short circuit/over voltage protection
Good EMC performance
Compact size; applicable to cameras
150 to 285 VAC wide voltage input

Specifications

Parameters11

Appearance	White
Dimension	144 mm × 80 mm × 33 mm (5.67" × 3.15" × 1.30")
Operating Conditions	0°C to 40°C (32°F to 104°F), Humidity: 10% to 95% (non-condensing)
LED Indicator	Green
Input	150 to 285 VAC, 47 Hz to 63 Hz
Output	12 VDC/1 A per channel
Ripple & Noise 150 mVp-p	0.15 Vp-p (150 mV)
AC Input Connector	C4
DC Output Connector	DC Plug: grid terminal
Storage Conditions	-40°C to 80°C (-40°F to 176°F), Humidity: 5% to 95% (non-condensing)
Cable Length Compensation	Normal: 12 VDC Long: 13.5 VDC Ex-Long: 15 VDC

Download datasheet (PDF)View on hikvision.com

Specifications come from Hikvision’s published datasheet for DS-2FA1225-C4(UK)(O-STD) and may be revised by the manufacturer. Confirm the exact variant with us before ordering.
